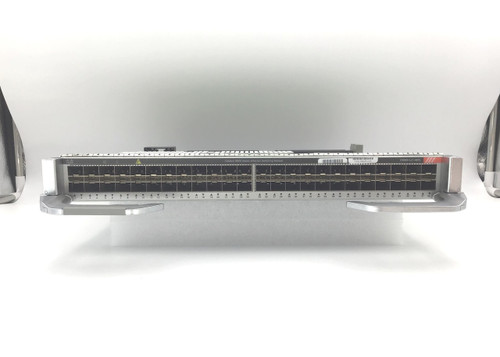

C9600-LC-48S Overview
Specification
- Product Type:: Line card
- Compatibility:: Cisco Catalyst 9600 Series Switches
- Ports:: 48 x 25G, 10G, and 1G Ethernet
- Product Name:Cisco Catalyst 9600 Series 48-Port 25GE/10GE/1GE
- Product Type:Line card
- Compatibility:Cisco Catalyst 9600 Series switches
- Ports:48 x 1/10/25 Gigabit Ethernet
- Data Transfer Rate:Up to 25 Gbps per port
- Form Factor:Plug-in module
- Dimensions:16.89 x 15.28 x 1.73 inches (42.9 x 38.81 x 4.39 cm)
- Weight:14.55 lb (6.60 kg)
- Operating Temperature:32°F to 104°F (0°C to 40°C)
- Storage Temperature:-40°F to 185°F (-40°C to 85°C)
- Humidity Range:10% to 90% non-condensing
- MTBF:691,148 hours
- Forwarding Performance:Up to 1.44 Tbps
- Packet Buffer Memory:32 MB
- Latency:Less than 5 microseconds (64-byte packets)
- MAC Addresses:256,000
- Jumbo Frame Support:Up to 9216 bytes
- Redundancy:Hot standby
- Standards Compliance:RoHS, FCC Part 15 A, UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950-1, EN 55024, EN 55022 Class A, CISPR 22 Class A, CISPR 24, EN300 386, VCCI Class A, AS/NZS CISPR 22 Class A, ETSI EN 300 386, KN 24, KN 2
Cisco Catalyst 9600 Series Line Cards Datasheet
