ISR4331-SEC/K9-new Overview

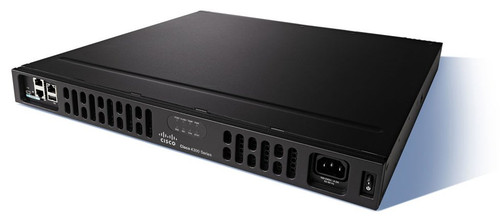

Cisco ISR4331-SEC/K9 is the Cisco ISR4331/k9 router with Security Bundle. Its other specifications are the same as ISR4331/k9.Quick spec of ISR4331-SEC/K9-new
- Product Code : Cisco ISR4331-SEC/K9
- Bundle : Security Bundle
- Aggregate Throughput : 100 Mbps to 300 Mbps
- Total onboard WAN or LAN 10/100/1000 ports : 3
- RJ-45-based ports : 2
- SFP-based ports : 2
- Enhanced service-module (SM-X) slot : 1
- NIM (Network Interface Modules) slots : 2
- Onboard ISC slot : 1
- Memory : 4 GB (default) / 16 GB (maximum)
- Flash Memory : 4 GB (default) / 16 GB (maximum)
- Power-supply options : Internal: AC and PoE
- Rack height : 1 RU
- Dimensions (H x W x D) : 44.45 x 438.15 x 438.15 mm
- Package Weight : 12.96 Kg
ISR4331-SEC/K9-new Specification
- Type :Cisco ISR4331/K9 with Security Bundle
- Aggregate Throughput :100 Mbps to 300 Mbps
- Total onboard WAN or LAN 10/100/1000 ports :3
- RJ-45-based ports :2
- SFP-based ports :2
- Enhanced service-module slots :1
- Doublewide service-module slots :0
- NIM slots :2
- OIR (all I/O modules) :Yes
- Onboard ISC slot :1
- Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) :4 GB
- Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) :16 GB
- Default memory DDR3 ECC DRAM (data plane) :NA
- Maximum memory DDR3 ECC DRAM (data plane) :NA
- Default memory DDR3 ECC DRAM (control/services plane) :NA
- Maximum memory DDR3 ECC DRAM (control/services plane) :NA
- Default flash memory :4 GB
- Maximum flash memory :16 GB
- External USB 2.0 slots (type A) :1
- USB console port -type B mini (up to 115.2 kbps) :1
- Serial console port - RJ45 (up to 115.2 kbps) :1
- Serial auxiliary port - RJ45 (up to 115.2 kbps) :1
- Power-supply options :Internal: AC and PoE
- Redundant power supply :N/A
- AC input voltage :100 to 240 VAC autoranging
- AC input frequency :47 to 63 Hz
- AC input current range, AC power supply (maximum) :3 to 1.3A
- AC input surge current :60 A peak and less than 5 Arms per half cycle
- Typical power (no modules) (watts) :42
- Maximum power with AC power supply (watts) :250
- Maximum power with PoE power supply (platform only) (watts) :530
- Maximum endpoint PoE power available from PoE power supply (watts) :250
