WS-C3650-24PD-S-Ref Overview

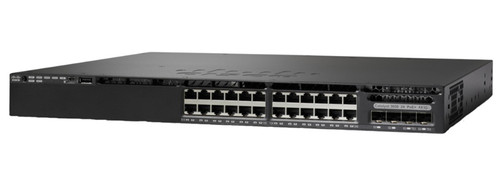

Cisco catalyst C3650-24PD-S is the next generation standalone with stack option switch. IP base feature set with 24 Gigabit Ethernet POE+ ports and 2 x 1G SFP and 2 x 10G SFP+ uplink ports, WS-C3650-24PD-S is designed for access layer or distribution layer for enterprise. 3650 series in IP base feature set combines both wired and wireless capacity on a single platform and supports up to 25 APs and 1000 clients for wireless connection (AP license purchase separately). Cisco Stackwise-160 simplifies network management and creates premium stacking architecture by supporting active-to-standby switchover without service interruption. Flexible Netflow monitors the network traffic flows for both wired and wireless users to help identify the threat of network.Quick spec of WS-C3650-24PD-S-Ref
- Product Code : WS-C3650-24PD-S
- Ports : 24 x 10/100/1000 (POE+)
- Unlink Interfaces : 2 x 10G SFP+ & 2 x 1G SFP
- Network management Interface : - Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling - Management console port: RJ-45-to-DB9 cable for PC connections
- Available PoE Power : 390W
- Switching Capacity : 88Gbps
- Maximum stacking number : 9
- Stack Bandwidth : 160Gbps
- Forwarding Performance : 68.45Mpps
- RAM : 4 G
- Number of AP per switch/stack : 50
- Number of wireless clients per switch/stack : 1000
- Manufacturer Warranty : 1 year warranty
WS-C3650-24PD-S-Ref Specification
- Enclosure type :Rack-mountable - 1U
- Ports :24 x 10/100/1000 (POE+) + 2 x 10G SFP+ & 2 x 1G SFP
-
Network management Interface
:
- Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections
- Available PoE Power :390W
- Switching Capacity :88Gbps
- Maximum stacking number :9
- Stack Bandwidth :160Gbps
- Forwarding Performance :68.45Mpps
- FNF entries :24000
- Maximum VLANs IDs :4,094
- Maximum VLANs IDs :32K
- CPU :Multicore CPU
- RAM :4 G
- Flash Memory :2 G
- Number of AP per switch/stack :50
- Number of wireless clients per switch/stack :1000
- Total number of WLANs per switch :64
- Wireless bandwidth per switch :up to 20Gbps
- Supported Aironet AP series :3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
- Console ports :USB (Type-B), Ethernet (RJ-45)
- Expansion Slot(s) : power redundant slot
-
Accessory & Rack Moubt Kits
:
- ACC-KIT-T1: Accessory kit
- RACK-KIT-T1: Rack mount kit
- 4PT-KIT-T1: Extension rails and brackets for four-point mounting
-
Stacking module & cable
:
- C3650-STACK-KIT: Stack Module
- STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
- STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
- STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
- Power supply :PWR-C2-640WAC
- Power Device :Power supply - redundant - plug-in module
- Power Redundancy :optional
- Voltage range (Auto) :100V-240V
- Power Consumption of standalone (in Watts) :101.5 (max)
- Width :17.5 Inches (44.5 Cm)
- Depth :17.625 Inches (44.8 Cm)
- Height :1.73 Inches (4.4 Cm)
- Shipping Weight :17.49 Kg
- Rack Mounting Kit :optional
- MTBF in hours :528,280
-
Compliant Standards
:
- IEEE 802.1D Spanning Tree Protoco
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1X-Rev
- IEEE 802.11
- IEEE 802.1ab (LLDP)
- IEEE 802.3ad
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- RMON I and II standards
- SNMP v1, v2c, and v3
- System software :IOS IP Base (Upgradable)
- EnergyWise license :ENERGY-MGMT, ENERGY-MGT-100-K9
-
Software license
:
- C3650-24-S-E: IP Base to IP Services RTU paper license
- L-C3650-24-S-E: IP Base to IP Services RTU electronic license
-
Access Point Licenses
:
- L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
- L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
- L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
- LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
-
features
:
- RPS Support
- Jumbo Frames
- VLANS
- Voice Vlan
- VTPv2
- CDPv2
- LLDP
- 802.3ad LACP and PAgP
- PVST/PVST+
- 802.1W/802.1S
- Port Fast/Uplink Fast
- Dynamic Trunking Protocol (DTP)
- port CoS Trust and Override
- Trusted Boundary
- ACL Classification
- ingress Policing
- Auto QoS
- Per VLAN policies
- 802.1p queues
- Scheduling
- Priority Queuing
- Configure CoS Priority Queues
- Configure CoS Priority Queues
- Configure Queue Weights
- Configure Buffers and Thresholds
- Class & Policy Maps
- Modify CoS and DSCP Mapping
- Weighted Tail Drop
- IGMPv1,v2,v3 and MLDv1, v2
- DHCP server
- DSCP transparency
- HSRP, VRRP
- RIPv1, v2 EIGRP stub, PIM stub, OSPF stub
- IPV6 management
-
Advanced Network security
:
- Port security
- DHCP snooping
- Dynamic ARP inspection (DAI)
- IP source guard
- The Unicast Reverse Path Forwarding (uRPF)
- Bidirectional data support on a SPAN
- User authentication
- Private VLAN
- Router and VLAN ACLs
- complete identity and security
- Multidomain authentication
- MAC address notification
- IGMP filtering
- Cisco security VLAN ACL
- Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
- Port-based ACLs
- TrustSec SXP
- IEEE 802.1ae
- TACACS+ and RADIUS authentication
- Cisco standard and extended IP security router ACLs
- Bridge protocol data unit (BPDU) Guard
- Spanning Tree Root Guard (STRG)
- Wireless end-to-end security
-
Management
:
- BRIDGE-MIB
- CISCO-AUTH-FRAMEWORK-MIB
- CISCO-BGP4-MIB, BGP4-MIB
- CISCO-BRIDGE-EXT-MIB
- CISCO-BULK-FILE-MIB
- CISCO-CABLE-DIAG-MIB
- CISCO-CALLHOME-MIB
- CISCO-CEF-MIB
- CISCO-CIRCUIT-INTERFACE-MIB
- CISCO-ENTITY-VENDORTYPE-OID-MIB
- CISCO-CONTEXT-MAPPING-MIB
- CISCO-DEVICE-LOCATION-MIB
- CISCO-DHCP-SNOOPING-MIB
- CISCO-EIGRP-MIB
- CISCO-EMBEDDED-EVENT-MGR-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENTITY-SENSOR-MIB
- ENTITY-MIB
- CISCO-ERR-DISABLE-MIB
- CISCO-CONFIG-COPY-MIB
- CISCO-FLOW-MONITOR-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-HSRP-MIB
- CISCO-IETF-ISIS-MIB
- CISCO-IF-EXTENSION-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-IP-CBR-METRICS-MIB
- CISCO-IPMROUTE-MIB
- CISCO-IP-STAT-MIB
- CISCO-IP-URPF-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-LAG-MIB
- CISCO-LICENSE-MGMT-MIB
- CISCO-MAC-AUTH-BYPASS-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MDI-METRICS-MIB
- CISCO-FLASH-MIB
- CISCO-OSPF-MIB
- CISCO-OSPF-TRAP-MIB
- CISCO-PAE-MIB
- CISCO-PAGP-MIB
- CISCO-PIM-MIB
- CISCO-PING-MIB
- CISCO-PORT-QOS-MIB
- CISCO-PORT-SECURITY-MIB
- CISCO-PORT-STORM-CONTROL-MIB
- CISCO-POWER-ETHERNET-EXT-MIB
- CISCO-PRIVATE-VLAN-MIB
- CISCO-PROCESS-MIB
- CISCO-PRODUCTS-MIB
- CISCO-RF-MIB
- CISCO-RTP-METRICS-MIB
- CISCO-RTTMON-MIB
- CISCO-SMART-INSTALL-MIB
- CISCO-SNMP-TARGET-EXT-MIB
- CISCO-STACKMAKER-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-UDLDP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- EtherLike-MIB
- HC-RMON-MIB
- IEEE8021-PAE-MIB
- IEEE8023-LAG-MIB
- IF-MIB
- IGMP-MIB
- IGMP-STD-MIB
- IP-FORWARD-MIB
- IP-MIB
- IPMROUTE-STD-MIB
- LLDP-EXT-MED-MIB
- LLDP-MIB
- NOTIFICATION-LOG-MIB
- OLD-CISCO-MEMORY-MIB
- CISCO-CDP-MIB
- POWER-ETHERNET-MIB
- RMON2-MIB
- RMON-MIB
- SNMP-COMMUNITY-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-PROXY-MIB
- SNMP-TARGET-MIB
- SNMP-USM-MIB
- SNMPv2-MIB
- SNMP-VIEW-BASED-ACM-MIB
- TCP-MIB
- UDP-MIB
- CISCO-IMAGE-MIB
- CISCO-STACKWISE-MIB
- AIRESPMACE-WIRELESS-MIB
- CISCO-LWAPP-IDS-MIB
- CISCO-LWAPP-AP-MIB
- CISCO-LWAPP-CCX-RM-MIB
- CISCO-LWAPP-CLIENT-ROAMING-MIB
- CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
- CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
- CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
- CISCO-LWAPP-DOT11-CLIENT-MIB
- CISCO-LWAPP-DOT11-MIB
- CISCO-LWAPP-DOWNLOAD-MIB
- CISCO-LWAPP-LINKTEST-MIB
- CISCO-LWAPP-MFP-MIB
- CISCO-LWAPP-MOBILITY-EXT-MIB
- CISCO-LWAPP-QOS-MIB
- CISCO-LWAPP-REAP-MIB
- CISCO-LWAPP-ROGUE-MIB
- CISCO-LWAPP-RRM-MIB
- CISCO-LWAPP-SI-MIB
- CISCO-LWAPP-TSM-MIB
- CISCO-LWAPP-WLAN-MIB
- CISCO-LWAPP-WLAN-SECURITY-MIB
-
Technical Support and Services
:
- Cisco SMARTnet Service
- Cisco Smart Foundation Service
- Cisco SP Base Service
- Cisco Focused Technical Support Services
- Operating temperature up to 5000 ft (1500 m) :23ºF to 113ºF / -5ºC to +45ºC
- Operating temperature up to 10,000 ft (3000 m) :23ºF to 104ºF / -5ºC to +40ºC
- Short-term exception at sea level with single fan failure :23ºF to 113ºF / -5ºC to +45ºC
- Short-term exception up to 5000 feet (1500 m) :23ºF to 122ºF / -5ºC to 50ºC
- Short-term exception up to 10,000 feet (3000 m) :23ºF to 113ºF / -5ºC to 45ºC
- Operating temperature up to 6000 ft (1800 m) :23ºF to 113ºF / -5ºC to +45ºC
- Operating temperature up to 10,000 ft (3000 m) :23ºF to 104ºF / -5ºC to +40ºC
- Operating temperature up to 13,000 ft (4000m) :23ºF to 95ºF / -5ºC to 35ºC
- Short-term exception up to 6,000 feet (1800 m) :23ºF to 131ºF /-5ºC to +55ºC
- Short-term exception up to 10,000 feet (3000 m) :23ºF to 122ºF / -5ºC to +50ºC
- Short-term exception up to 13,000 feet (4000 m) :23ºF to 113ºF / -5ºC to +45ºC
- Short-term exception at sea level with single fan failure :23ºF to 113ºF / -5ºC to +45º
- Storage environment : -40ºF to 160ºF / -40ºC to 70ºC
- Operating altitude :Up to 5000m
- Storage altitude :Up to 5000m
- Operating relative humidity :5% to 96% noncondensing
- Storage relative humidity :5% to 96% noncondensing
- Short-term exception at sealevel with single fan failure :23ºF to 113ºF / -5ºC to +45º
- Storage environment : -40ºF to 160ºF / -40ºC to 70ºC
- Operating altitude :Up to 4000m
- Storage altitude :Up to 4573m
- Operating relative humidity :10% to 95% noncondensing
- Storage relative humidity :10% to 95% noncondensing
