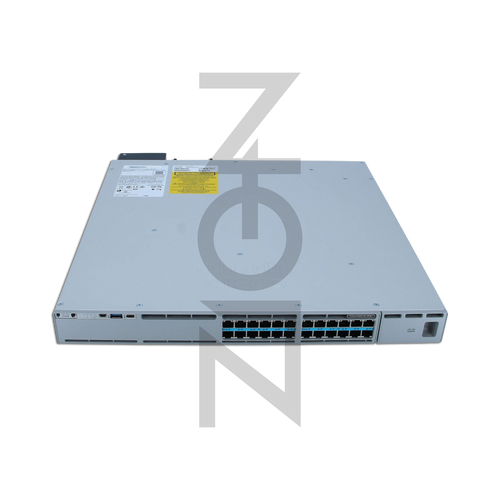

The Cisco Meraki C9300X-24HX-M switch features 24x MultiGB UPoE+ RJ-45 ports and a modular design with one expansion module slot for increased flexibility. Available module options include the C9300X-NM-2C-M (2x 40G/100G QSFP28 Uplink Module) and the C9300X-NM-8Y-M (8x 1/10G/25G SFP28 Uplink Module). With a switching capacity of 2000 Gbps and a forwarding rate of 327.38 Mpps, this switch can handle high-performance networking tasks efficiently. The MAC address table size is up to 32,000 entries, enabling seamless connectivity in diverse network environments without compromising performance or reliability.
- Network Ports : 24x MultiGB Ethernet UPoE+ RJ-45
- Unclaimed : Yes - Licence can be purchased directly from Meraki
- Management Ports : 1x Management RJ-45
- Stacking Ports : 2x 1T/480G Hardware Stacking Ports
- Stacking Bandwidth : 1 Tbps / 480 Gbps
- Stacking Cable Options : Stacking - STACK-T1-50CM-M, STACK-T1-1M-M, STACK-T1-3M-M, StackPower - CAB-SPWR-30CM-M, CAB-SPWR-150CM-M
- Module Slots : 1x Expansion Module Slot - module is not included
- Module Options : C9300X-NM-2C-M (2x 40G/100G QSFP28 Uplink Module), C9300X-NM-8Y-M (8x 1/10G/25G SFP28 Uplink Module)
- Fan Module Options : 3x FAN-T2-M Included
- Power Supplies Included : 1x PWR-C1-1100WACP-M - 2x Slots
- Power Supply Options : PWR-C1-715WAC-PM, PWR-C1-1100WACP-M, PWR-C1-1900WAC-P-M
- PoE Budget : 735W (Primary PSU), 1835W (w/ Secondary PSU)
- Switching Capacity : 2000 Gbps
- Forwarding Rate : 327.38 Mpps
- MAC Address Table Size : 32,000
- : Included (1-RU)
- Model Number : C9300X-24HX-M
- Condition : Seller refurbished
1-Year
