Condition: NEW
Manufacturer Part #: C9300L-48T-4X-M

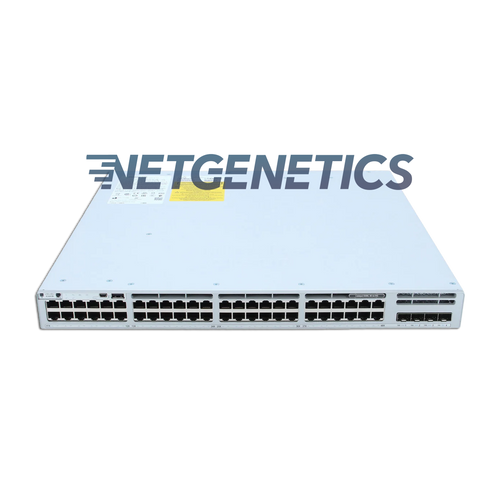

Cisco Catalyst 9300-M Switch Managed via Cisco Meraki Dashboard - Layer 3, 48 port data only switch (48 x 1G copper ports; with 4 x 10G SFP+ fixed uplinks) - Stack up to 8 switches with 320 Gbps of stacking bandwidth (stacking kit sold separately) - has 2 FRU power supply module slots (ships with 1 default power supply); 350 watt default primary AC power supply is PWR-C1-350WAC-P - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-320 stacking option - Enterprise and Advanced licenses are available in 1, 3, 5, 7, and 10 year terms
The Catalyst 9300-M switch is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. They also deliver resiliency with fast stack convergence and StackPower, as well as provide Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security.
By pooling and distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 1000Base-T + 4 x 1/10 Gigabit (uplink)
Performance: Switching capacity: 176 Gbps | Forwarding rate: 130.95 Mpps | Forwarding rate with stacking: 369.05 Mpps | Stacking bandwidth: 496 Gbps
Capacity: Priority queues: 8 | Maximum number of VLANs: 4094 | Active VLANs: 1000 | Link aggregation ports: 8
MAC Address Table Size: 32000 entries
Routing Protocol: VRRP, OSPFv2, static IP routing, STP
Remote Management Protocol: SNMP, DHCP, Syslog
Features: VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, firmware upgradable, DHCP snooping, ACL support, QoS, DHCP server, DAI, UDLD, DHCP relay, Port Security, Multicast filtering function, 802.1x authentication, 3 fans, RBAC, push notification, Root Guard, Loop Guard, ZTP, MAB, BPDU Guard, VLAN trunking, CDP, Multicast routing, DSCP to CoS mapping
Compliant Standards: IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power: AC
Power Redundancy: Yes
Dimensions (WxDxH): 17.5 in x 17.7 in x 1.7 in
Weight: 15.43 lbs
