Overview

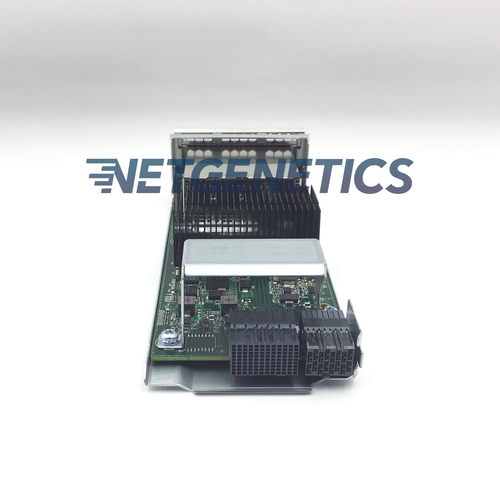

The Cisco C9350-NM-8Y is a field-replaceable uplink network module designed specifically for Cisco C9350 Series Smart Switches. It provides flexible high-speed fiber uplink connectivity for enterprise campus, aggregation, and access-layer environments where scalable bandwidth and migration flexibility are required. The module supports eight SFP56-based interfaces operating at 1G, 10G, or 25G speeds, with the option to convert the top-row ports into four 50G interfaces for higher-capacity uplinks. Designed for modern enterprise workloads including Wi-Fi 6/7, 5G integration, video collaboration, and high-density access deployments, the C9350-NM-8Y enables organizations to scale bandwidth without replacing the switch platform.
Specifications
- Model: Cisco C9350-NM-8Y
- Product Type: Field-replaceable uplink network module
- Supported Platform: Cisco C9350 Series Smart Switches
- Port Configuration:
- 8 × SFP56 ports operating at 1G / 10G / 25G
- Alternative mode: 4 × 50G ports
- Default Operating Mode:
- 8 × 1/10/25 Gigabit Ethernet ports enabled
- Alternative Port Mode:
- 4 × 50 Gigabit Ethernet on top-row ports
- Bottom-row ports become inactive in 50G mode
- Maximum Aggregate Bandwidth:
- Up to 200 Gbps
- Interface Type:
- SFP28 / SFP56-based uplink interfaces
- Supported Ethernet Speeds:
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- 50 Gigabit Ethernet
- Deployment Use Cases:
- Enterprise campus access uplinks
- Distribution and aggregation connectivity
- High-density wireless infrastructure
- Data-intensive applications and IoT environments
- Scalability Features:
- Migration path from 1G → 10G → 25G → 50G without switch replacement
- Installation Type:
- Hot-swappable / field-replaceable module
- Compatibility Notes:
- Designed exclusively for Cisco C9350 switches and not intended for legacy Catalyst network module slots.
