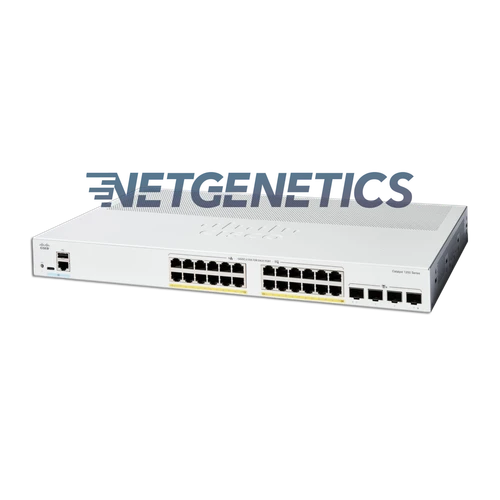

The Cisco C1200-24FP-4X Catalyst 1200 switch provides robust performance with its dual-core ARM CPU operating at 1.4 GHz and a switching capacity of up to 128 Gbps. It supports Power over Ethernet Plus (PoE+) on all twenty-four Gigabit RJ45 ports, delivering power directly to connected devices like IP cameras or phones while reducing cabling needs. Four additional SFP+ slots offer support for high-speed uplinks up to 10Gbps each. This model allows configuration of up to 255 active VLANs, facilitating secure segmentation in complex networks. The forwarding rate reaches rates as fast as approximately 95.23 Mpps, providing smooth traffic handling in high-frequency situations.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 1x Standard RJ45 Console, 1x USB Type C - Managed via the Cisco Business Dashboard
- VLAN : Support for up to 255 active VLANs simultaneously
- Packet Buffer : 1.5 MB
- Fan Module Options : 1 (Fixed / Internal)
- Power Supplies Included : 1x Internal AC PSU - 100 to 240V 50 to 60 Hz, internal, universal
- PoE Budget : 375W
- Switching Capacity : 128.0 Gbps
- Forwarding Rate : 95.23 Mpps
- MAC Address Table Size : 8,000
- CPU : Dual-core ARM at 1.4 GHz
- DRAM and Flash : 1 GB DDR4 DRAM, 512 MB Flash
- Model Number : C1200-24FP-4X
- Condition : NEW
