Overview
The Juniper Networks SRX4600 Services Gateway is a high-performance, next-generation firewall (NGFW) and hardware-accelerated security gateway purpose-built to protect mission-critical data centers, large enterprise campuses, and cloud service provider environments. Housed in a compact 1U form factor, the SRX4600 runs on the reliable Junos OS and features dual 14-core Intel Xeon processors, enabling it to deliver an impressive Internet Mix (IMIX) firewall throughput of up to 400 Gbps. It seamlessly unifies carrier-class routing with advanced security capabilities, including automated SD-WAN, intrusion prevention (IPS), malware sandboxing via Juniper Advanced Threat Prevention (ATP), and Encrypted Traffic Insights to expose threats within SSL transactions. Engineered for high resiliency, the architecture physically isolates the control and data planes, features stateful clustering for high availability, and incorporates N+1 redundant fans alongside hot-swappable dual AC or DC power supplies.
Specifications
System Information & Performance
-
Brand / Line: Juniper Networks SRX Series
-
Model: SRX4600 Services Gateway
-
Form Factor: 1U Rack-mountable
-
Operating System: Juniper Junos OS
-
Processors: 2 x Intel Xeon (14 cores per processor)
-
System Memory (RAM): 256 GB
-
Storage: 2 x 1 TB M.2 SSDs (960 GB usable layout)
-
Firewall Throughput (IMIX): Up to 400 Gbps (with Express Path acceleration)
-
Next-Generation Firewall (NGFW) Throughput: 60 Gbps
-
Intrusion Prevention System (IPS) Throughput: 65 Gbps
-
IPsec VPN Throughput: 16 Gbps (IMIX) / 55 Gbps (1400 B)
-
Maximum Concurrent Sessions: 60 million
-
Connections Per Second (CPS): 600,000
-
Routing Table Size (RIB/FIB): 4 million / 1.2 million
-
Maximum Security Policies: 80,000
Port Configuration & Connectivity
-

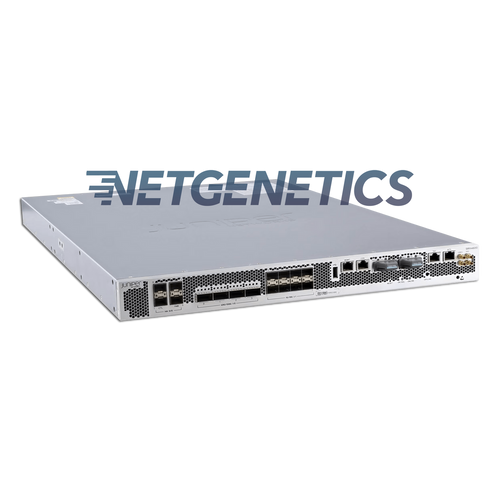

Native Interface Ports: * 8 x 1GbE/10GbE SFP+
-
4 x 40GbE/100GbE QSFP28 (Each port supports breakout to 4x10GbE, allowing up to 24 total 10GbE ports)
-
-
Dedicated High Availability (HA) Ports: * 2 x 1GbE/10GbE SFP+ Control ports (MACsec-enabled)
-
2 x 1GbE/10GbE SFP+ Data/Fabric ports (MACsec-enabled)
-
-
Management & Console Ports: * 1 x Out-of-Band (OOB) Management RJ-45 (1 Gbps)
-
1 x Console RJ-45 (RS-232)
-
1 x USB 2.0 Type A
-
-
Precision Time Protocol Ports: Time of Day (RS-232 RJ-45), BITS clock (RJ-48), 10-MHz timing (COAX Input/Output), 1-PPS connection (COAX Input/Output)
Security & Networking Features
-
Firewall Services: Stateful firewall services, Zone-based firewall, Unified Access Control (UAC), Screens and distributed denial-of-service (DDoS) protection
-
Advanced Threat Prevention: AI-predictive threat prevention, malware sandboxing, actionable threat intelligence feeds, Encrypted Traffic Insights (SSL/TLS inspection)
-
High Availability Features: Active/Active and Active/Passive clustering, Configuration & session state synchronization, Device/link detection, Unified In-Service Software Upgrade (ISSU), Multi-Node HA (MNHA)
-
Routing & QoS: IPv4/IPv6 Dual Stack, OSPF, BGP, RIP, ECMP, Policy-based/source-based routing, MPLS, Quality of Service (802.1p, DSCP marking/shaping, WRED)
-
Network Address Translation (NAT): Source NAT with PAT, Destination NAT with PAT, Bidirectional 1:1 static NAT, Persistent NAT, Carrier-grade NAT (Port Block Allocation)
Power & Reliability
-
Power Supply Support: 1+1 Redundant, Hot-Swappable
-
Power Options: Dual AC Model (2 x 1600 W PSU) or Dual DC Model (2 x 1100 W PSU)
-

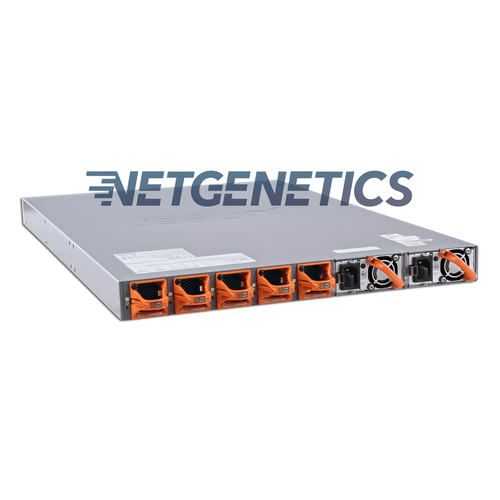

Cooling / Airflow: Front-to-back airflow; 5 x Redundant Fans (4+1 configuration)
-
Average Power Consumption: 650 W
-
Average Heat Dissipation: 2218 BTU/hour
-
MTBF: 112,000 Hours
Physical & Environmental Specs
-
Dimensions (W x H x D): 17.4 in x 1.7 in x 26.5 in (Chassis base)
-
With AC PEMs: 17.4 in x 1.7 in x 27.29 in
-
With DC PEMs: 17.4 in x 1.7 in x 29.20 in
-
-
Weight: * AC Model: ~38 lbs (17.24 kg)
-
DC Model: ~40 lbs (18.14 kg)
-
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Operating Humidity: 5% to 90% (non-condensing)
-
Compliance Standards: NEBS Level 3 designed, FCC Class A, RoHS 2 compliant
