Overview

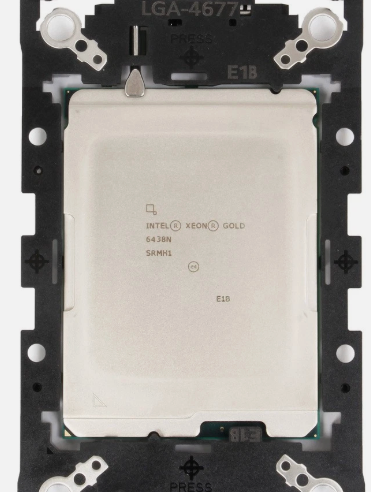

The HP Intel Xeon Gold 6438N is a 4th Generation Intel Xeon Scalable processor (Sapphire Rapids) designed for HPE ProLiant Gen11 servers. Featuring 32 cores and 64 threads, it delivers a 2.00GHz base frequency and a 3.60GHz Max Turbo frequency with a substantial 60MB cache. This CPU is optimized for high-density compute and networking, supporting DDR5-4800 memory and PCIe 5.0.
HP CPU INTEL XEON GOLD 32 CORE PROCESSOR 6438N 2.00GHZ BASE / 3.60GHZ MAX 60MB CACHE 16GT/S UPI TDP 205W 2S FCLGA4677 FOR HPE PROLIANT DL360 G11 / ML350 G11
HP CPU INTEL XEON GOLD 6438N 32C 205W FOR HPE DL360 ML350 GEN11 P60446-001
Specifications
- Manufacturer: Intel Part Number:P60446-001
- MANUFACTURER: HP / INTEL
- PART NUMBER: P60446-001
- CPU SERIES: 4TH GEN INTEL XEON SCALABLE GOLD 6400 SERIES
- PROCESSOR CODE NAME: SAPPHIRE RAPIDS
- SOCKETS SUPPORTED: FCLGA4677
- COMPATIBILITY: HPE PROLIANT DL360 G11 / ML350 G11
PERFORMANCE
- CPU FREQUENCY: 2.00GHZ
- CPU MAX TURBO FREQUENCY: 3.60GHZ
- MULTI-CORE: 32-CORE
- THREADS: 64
- CACHE: 60MB
- INTEL UPI SPEED: 16GT/S
- MAX NUMBER UPI LINKS: 3
- LITHOGRAPHY: INTEL 7
- THERMAL DESIGN POWER: 205W
- INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE ( INTEL SST-PP )
- CONFIG 0: 32 CORE / 2.0GHZ / 205W
- CONFIG 1: 32 CORE / 1.9GHZ / 205W
- CONFIG 2: 32 CORE / 2.1GHZ / 205W
- SUPPLEMENTAL INFORMATION
- EMBEDDED OPTIONS AVAILABLE: YES
- MEMORY SPECS
- MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 4TB ( 4,000GB )
- MEMORY TYPES: DDR5
- MAX MEMORY SPEEDS: 4800 MHZ 1DPC / 4400 MHZ 2DPC
- MAX NUM. MEMORY CHANNELS: 8
- ERROR CORRECTION CODE SUPPORT ( ECC ): YES
- EXPANSION OPTIONS
- SCALABILITY: 2S
- PCI EXPRESSION REVISION: 5.0
- MAX NUM. OF PCI LANES: 80
- ADVANCED TECHNOLOGIES
- INTEL ON DEMAND FEATURE ACTIVATION: YES
- INTEL QUICKASSIST TECHNOLOGY ( QAT ): 2 DEFAULT DEVICES
- INTEL DYNAMIC LOAD BALANCER ( DLB ): 2 DEFAULT DEVICES
- INTEL DATA STREAMING ACCELERATOR ( DSA ): 1 DEFAULT DEVICES
- INTEL ADVANCED MATRIX EXTENSIONS ( AMX ): YES
- INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
- INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: YES
- INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
- INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE: YES
- INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
- HIGH PRIORITY CORES: 12
- HIGH PRIORITY CORE FREQUENCY: 2.20GHZ
- LOW PRIORITY CORES: 20
- LOW PRIORITY CORE FREQUENCY: 1.80GHZ
- INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
- INTEL SPEED SHIFT TECHNOLOGY: YES
- INTEL TURBO BOOST TECHNOLOGY: 2.0
- INTEL HYPER THREADING TECHNOLOGY: YES
- INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
- INTEL 64: YES
- INSTRUCTION SET EXTENSIONS: INTEL AMX, INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
- NUMBER OF AVX-512 FMA UNITS: 2
- SECURITY & RELIABILITY
- INTEL CRYPTO ACCELERATION: YES
- INTEL QUICKASSIST SOFTWARE ACCELERATION: YES
- INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
- INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
- INTEL TOTAL MEMORY ENCRYPTION: YES
- INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
- INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
- MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 128GB
- INTEL OS GUARD: YES
- INTEL TRUSTED EXECUTION TECHNOLOGY: YES
- EXECUTE DISABLE BIT: YES
- INTEL BOOT GUARD: YES
- INTEL RUN SURE TECHNOLOGY: YES
- MODE BASED EXECUTE CONTROL ( MBEC ): YES
- INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
- INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
- INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
