Cisco
Cisco ISR4431/K9 4x 1GB RJ-45 4x 1GB SFP 3x NIM Slot 1x ISC Slot Router
(No reviews yet)
Write a Review
- MPN:
- ISR4431/K9
- Condition:
- Refurbished
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description

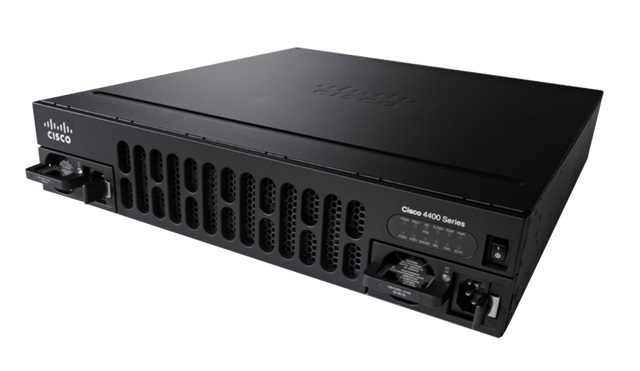

Cisco ISR4431/K9 4x 1GB RJ-45 4x 1GB SFP 3x NIM Slot 1x ISC Slot Router
ISR4431/K9 Overview
Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.
Quick spec of ISR4431/K9
- Product Code : Cisco ISR4431/K9
- Aggregate Throughput : 500 Mbps to 1 Gbps
- Total onboard WAN or LAN 10/100/1000 ports : 4
- RJ-45-based ports : 4
- SFP-based ports : 4
- Enhanced service-module (SM-X) slot : 0
- NIM (Network Interface Modules) slots : 3
- Onboard ISC slot : 1
- DDRM (data plane) : 2 GB (default) / 2 GB (maximum)
- DDRM (control/services plane) : 4 GB (default) / 16 GB (maximum)
- Flash Memory : 8 GB (default) / 32 GB (maximum)
- Power-supply options : Internal: AC, DC, and PoE
- Rack height : 1 RU
- Dimensions (H x W x D) : 43.9 x 438.15 x 507.2 mm
- Package Weight : 20.88 Kg
ISR4431/K9 Specification
- Aggregate Throughput :500Mbps to 1Gbps
- Total onboard WAN or LAN 10/100/1000 ports :4
- RJ-45-based ports :4
- SFP-based ports :4
- Enhanced service-module slots :0
- Doublewide service-module slots :0
- NIM slots :3
- OIR (all I/O modules) :Yes
- Onboard ISC slot :1
- Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) :NA
- Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) :NA
- Default memory DDR3 ECC DRAM (data plane) :2 GB
- Maximum memory DDR3 ECC DRAM (data plane) :2 GB
- Default memory DDR3 ECC DRAM (control/services plane) :4 GB
- Maximum memory DDR3 ECC DRAM (control/services plane) :16 GB
- Default flash memory :8 GB
- Maximum flash memory :32 GB
- External USB 2.0 slots (type A) :2
- USB console port -type B mini (up to 115.2 kbps) :1
- Serial console port - RJ45 (up to 115.2 kbps) :1
- Serial auxiliary port - RJ45 (up to 115.2 kbps) :1
- Power-supply options :Internal: AC, DC, and PoE
- Redundant power supply :Internal: AC, DC, and PoE
- AC input voltage :100 to 240 VAC autoranging
- AC input frequency :47 to 63 Hz
- AC input current range, AC power supply (maximum) :3 to 1.3A
- AC input surge current :60 A peak and less than 5 Arms per half cycle
- Typical power (no modules) (watts) :65
- Maximum power with AC power supply (watts) :250 (no PoE)
- Maximum power with PoE power supply (platform only) (watts) :500 with PoE redundant
- Maximum endpoint PoE power available from PoE power supply (watts) :250 W with optional redundancy
