Cisco

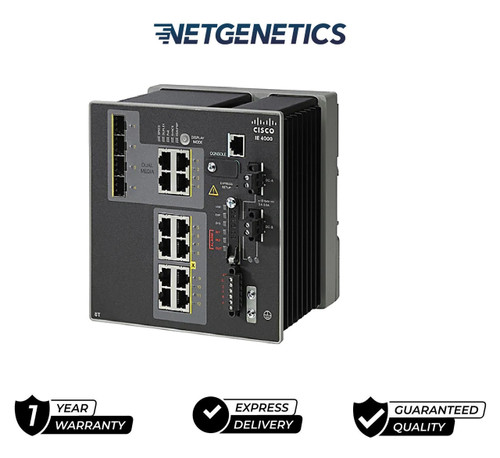

Cisco IE-4000-4T4P4G-E Industrial Ethernet Switch 4000 Series
(No reviews yet)
Write a Review
- MPN:
- IE‑4000‑4T4P4G‑E
- Condition:
- New
Frequently bought together:
Description
IE-4000-4T4P4G-E-New Overview
IE-4000-4T4P4G-E is an IE4000 series switch providing 4 x RJ45 10/100M, 4 x PoE 10/100M, 4 x 1G Combo, and LAN Base. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.Quick spec of IE-4000-4T4P4G-E-New
- Model : IE-4000-4T4P4G-E
- Total Ports : 12
- GE combo uplinks (4G) : 4 GE
- RJ-45 copper ports (T) : 4 FE
- PoE/PoE+ ports (P, GP), Maximum PoE power budget : 4 FE, 125W
- Default software : LAN Base
- Dimensions (H x W x D) : 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
- Weight : 6.35 pounds (2.88 kg)
IE-4000-4T4P4G-E-New Specification
- Total Ports :12
- GE combo uplinks (4G) :4 GE combo uplink ports (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
- RJ-45 copper ports (T) :4 FE
- PoE/PoE+ ports (P, GP), Maximum PoE power budget :4 FE, 125W
- Default software :LAN Base feature set (Can be upgraded to IP Services at a fee.)
-
Hardware
:
- 1GB DRAM
- 128-MB onboard flash memory
- 1-GB removable SD flash memory card
- Mini-USB connector
- RJ-45 connector
- Alarm :Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
-
Power Input
:
- Redundant DC input voltage with operating range: nominal 9.6 to 60VDC
- Maximum DC input current: 3.7A
- Power consumption :35W
- Dimensions (H x W x D) :6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
- Weight :6.35 pounds (2.88 kg)
- Forwarding rate :Line rate for all ports and all packet sizes
- Number of queues :4 egress
- Unicast MAC addresses :16,000
- IGMP multicast groups :1,000
- Number of VLANs :1,000
- IPv4 MAC security ACEs :1,000 with default TCAM Template
- NAT translation :Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
