Description

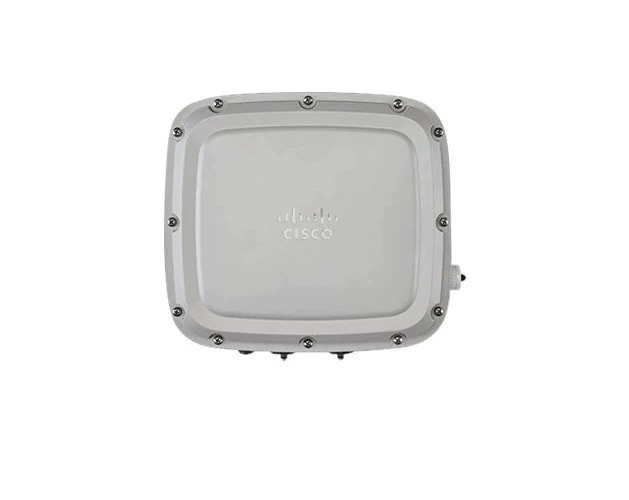

Cisco C9124AXI-B 9124AXI Series Dual Band Access Point – New

Cisco C9124AXI-B Overview

With the emergence of high-density networks and the Internet of Things (IoT), we are more dependent on wireless networks than ever before. An increasing number of devices connect to the network every year, ranging from high-performance client devices to low-bandwidth IoT devices. The Cisco Catalyst 9124AX Series outdoor access points provide a seamless experience, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, the Catalyst 9124AX Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

C9124AXI-B Specification

Key Features :

Device Type : Wireless Access Point
Ruggedized Design : Outdoor

Networking :
Form Factor : External
Connectivity Technology : Wireless
Line Coding Format : Ofdma
Data Link Protocol : Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n (draft 2.0), Ieee 802.11ac, Bluetooth 5.0, Ieee 802.11ax (wi-fi 6)
Spread Spectrum Method : Ofdma
Frequency Band : 2.4 Ghz, 5 Ghz
Status Indicators : Status
Features : Dfs Support, Wi-fi Multimedia (wmm) Support, Maximum Ratio Combining (mrc), Wireless Intrusion Prevention System (wips), 802.1x Authentication, Cyclic Shift Diversity (csd), Beamforming Technology, Packet Aggregation A-mpdu, Packet Aggregation A-msdu, 4x4 Mu-mimo Technology, Secure Boot, Target Wait Time (twt), Image Signing, CISCO Trust Anchor Module, Bss Coloring, 4k/8k Uhd Video Streaming
Encryption Algorithm : Aes, Tls, Peap, Ttls, Tkip, Wpa, Wpa2, Eap-sim, Wpa3, Wpa3-enterprise, Eap-fast, Eap-tls, Eap-ttls, Eap-gtc
Authentication Method : Ms-chap V.2, Extensible Authentication Protocol (eap), Eap-fast, Eap-tls, Eap-ttls
Compliant Standards : Ieee 802.3, Ieee 802.11b, Ieee 802.11a, Ieee 802.3af, Ieee 802.11d, Ieee 802.11g, Ieee 802.1x, Ieee 802.3ae, Ieee 802.11i, Ieee 802.11h, Ieee 802.11n (draft 2.0), Ieee 802.11k, Ieee 802.3at, Ieee 802.15.4, Ieee 802.11ac, Ieee 802.11r, Ieee 802.11u, Ieee 802.11v, Ieee 802.3bz, Ieee 802.3bt, Ieee 802.11ax, Ieee 802.15.1, Wi-fi Certified 6

Antenna :
Antenna : Internal
Directivity : Omni-directional

Internet Of Things (iot)
Internet Of Things (iot) Compatible : Yes
Communications Technology : Bluetooth Low Energy (le)

Expansion / Connectivity :
Interfaces :
1 X 1/2.5gbase-t - Rj-45
1 X 1000base-x - Sfp
1 X 1000base-t - Rj-45
1 X Management - Rj-45

Power :
Power Over Ethernet (poe) Supported : Upoe

Cisco C9124AXI-B Datasheet
