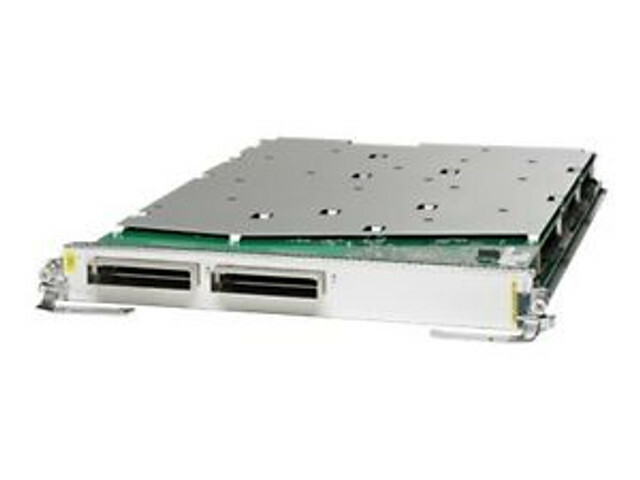

Cisco A9K-2X100GE-TR ASR 9000 2-Port 100GE Packet Transport with CFP Line Card

(No reviews yet) Write a Review

MPN:

A9K-2X100GE-TR

Condition:

Refurbished

Shipping:

Free Shipping

Description
Contact
0 Reviews

Description

Cisco A9K-2X100GE-TR 2x 100GB CFP (Transport Optimized) Router Line Card

A9K-2X100GE-TR Overview

Remove bandwidth bottlenecks from increased video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic with the Cisco® ASR 9000 Series 2-Port 100 Gigabit Ethernet Line Cards. These powerful line cards deliver an industry-leading two 100 Gigabit Ethernet ports to any slot of a Cisco ASR 9000 Series Aggregation Services Router. Large 10 Gigabit Ethernet link aggregation bundles can now be replaced by a single 100 Gigabit Ethernet port to simplify network designs. CISCO A9K-2X100GE-TR deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching (MPLS) edge services.

Quick spec of A9K-2X100GE-TR

Part Number : A9K-2X100GE-TR
Product Description : Cisco ASR 9000 2-Port 100GE Packet Transport Optimized Line Card, Requires CFP optics
Supported Devices : Cisco ASR 9000 Router
Connectivity : 10-Mbps, 100-Mbps, 1-Gbps, and 10-Gbps 802.3 Ethernet
Memory : 4 GB DRAM
Options : Each line card is available as either a low queue, base or extended line card.
Physical dimensions (H x W x D); weight : 14 x 1.72 x 20.5 in.(35.56 x 4.37 x 52.07 cm) 14 – 19 lb (6.35 – 8.62 kg)
Power : Maximum 350W – 630W (depending on the card type); typical 310W – 565W (depending on the card type)

A9K-2X100GE-TR Specification

Part Number :A9K-2X100GE-TR
Product Description :Cisco ASR 9000 2-Port 100GE Packet Transport Optimized Line Card, Requires CFP optics
Chassis compatibility :Compatible with the Cisco ASR 9000 Series 22-slot, 10-slot, and 6-slot chassis
Port density :2 ports of 100 Gigabit Ethernet per line card
Ethernet :
- 100-Gbps IEEE 802.3ba compliant
- 100 Gigabit Ethernet PHY monitoring
- IEEE 802.x flow control
- Full-duplex operation
- Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check
- (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
Performance : 100-Gbps line-rate throughput per port
Options :Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card
Reliability and availability :Line card online insertion and removal (OIR) support without affecting the system
Physical dimensions (H x W x D); weight :14 x 1.72 x 20.5 in.; 14 lb (35.56 x 4.37 x 52.07 cm; 6.35 kg)
Network Equipment Building Standards (NEBS) :
- Cisco ASR 9000 Series Routers are designed to meet:
- SR-3580: NEBS Criteria Levels (Level 3)
- GR-1089-CORE: NEBS EMC and Safety
- GR-63-CORE: NEBS Physical Protection
Operating temperature (nominal) :41 to 104ºF (5 to 40ºC)
Operating temperature (short-term) :23 to 131ºF (-5 to 55ºC) Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period).
Operating humidity (nominal) (relative humidity) :10 to 85%
Storage temperature :-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity) :5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude :-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
ETSI standards :
- Cisco ASR 9000 Series Routers are designed to meet:
- EN300 386: Telecommunications Network Equipment (EMC)
- ETSI 300 019 Storage Class 1.1
- ETSI 300 019 Transportation Class 2.3
- ETSI 300 019 Stationary Use Class 3.1
- EN55022: Information Technology Equipment (Emissions)
- EN55024: Information Technology Equipment (Immunity)
- EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards :
- Cisco ASR 9000 Series Routers are designed to meet:
- FCC Class A
- ICES 003 Class A
- AS/NZS 3548 Class A
- CISPR 22 (EN55022) Class A
- VCCI Class A
- BSMI Class A
- IEC/EN 61000-3-2: Power Line Harmonics
- IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity :
- Cisco ASR 9000 Series Routers are designed to meet:
- IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
- IEC/EN-61000-4-3: Radiated Immunity (10V/m)
- IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
- IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
- IEC/EN-61000-4-5: Signal Ports (1kV)
- IEC/EN-61000-4-5: Surge DC Port (1kV)
- IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
- IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
- IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety :
- Cisco ASR 9000 Series Routers are designed to meet:
- UL/CSA/IEC/EN 60950-1
- IEC/EN 60825 Laser Safety
- ACA TS001
- AS/NZS 60950
- FDA - Code of Federal Regulations Laser Safety

A9K-2X100GE-TR Datasheet
