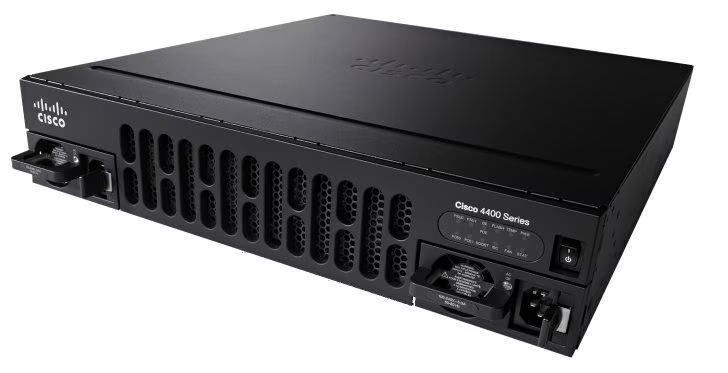

Cisco ISR4451-X/K9 4x 1GB RJ-45 4x 1GB SFP 6x Slot (3x NIM 2x SM 1x ISC) Router
ISR4451-X/K9 Overview
Cisco 4451 Integrated Services Router, named as ISR4451-X, which supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.
ISR4451-X/K9 Specification
|
Aggregate Throughput |
1 Gbps to 2Gbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
4 |
|
RJ-45-based ports |
4 |
|
SFP-based ports |
4 |
|
Enhanced service-module slots |
2 |
|
Doublewide service-module slots |
1 (assumes no singlewide SM-X modules installed) |
|
NIM slots |
3 |
|
OIR (all I/O modules) |
Yes |
|
Onboard ISC slot |
1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
NA |
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
NA |
|
Default memory DDR3 ECC DRAM (data plane) |
2 GB |
|
Maximum memory DDR3 ECC DRAM (data plane) |
2 GB |
|
Default memory DDR3 ECC DRAM (control/services plane) |
4 GB |
|
Maximum memory DDR3 ECC DRAM (control/services plane) |
16 GB |
|
Default flash memory |
8 GB |
|
Maximum flash memory |
32 GB |
|
External USB 2.0 slots (type A) |
2 |
|
USB console port -type B mini (up to 115.2 kbps) |
1 |
|
Serial console port - RJ45 (up to 115.2 kbps) |
1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
|
Power-supply options |
Internal: AC, DC and PoE |
|
Redundant power supply |
Internal: AC, DC and PoE |
|
AC input voltage |
100 to 240 VAC autoranging |
|
AC input frequency |
47 to 63 Hz |
|
AC input current range, AC power supply (maximum) |
7.1 to 3.0A |
|
AC input surge current |
<50 A |
|
Typical power (no modules) (watts) |
158 |
|
Maximum power with AC power supply (watts) |
450 (no PoE) |
|
Maximum power with PoE power supply (platform only) (watts) |
1000 with PoE redundant 1450 with PoE boost no redundancy |
|
Maximum endpoint PoE power available from PoE power supply (watts) |
500 W with optional redundancy |
|
Maximum endpoint PoE power capacity with PoE boost (watts) |
950 W no redundancy |
