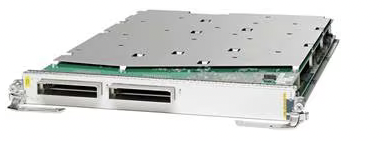

Cisco A9K-2X100GE-SE ASR 9000 2x 100GB CFP (Service Edge) Router Line Card

Quick spec of A9K-2X100GE-SE

• Part Number : A9K-2X100GE-SE
• Product Description : Cisco ASR 9000 2-Port 100GE Service Edge Optimized Line Card, Requires CFP optics
• Supported Devices : Cisco ASR 9000 Router
• Connectivity : 10-Mbps, 100-Mbps, 1-Gbps, and 10-Gbps 802.3 Ethernet
• Memory : 4 GB DRAM
• Options : Each line card is available as either a low queue, base or extended line card.
• Physical dimensions (H x W x D); weight : 14 x 1.72 x 20.5 in.(35.56 x 4.37 x 52.07 cm) 14 – 19 lb (6.35 – 8.62 kg)
• Power : Maximum 350W – 630W (depending on the card type); typical 310W – 565W (depending on the card type)

A9K-2X100GE-SE Specification

1. Part Number :A9K-2X100GE-SE
2. Product Description :Cisco ASR 9000 2-Port 100GE Service Edge Optimized Line Card, Requires CFP optics
3. Chassis compatibility :Compatible with the Cisco ASR 9000 Series 22-slot, 10-slot, and 6-slot chassis
4. Port density :2 ports of 100 Gigabit Ethernet per line card
5. Ethernet :
   •   100-Gbps IEEE 802.3ba compliant
   •   100 Gigabit Ethernet PHY monitoring
   •   IEEE 802.x flow control
   •   Full-duplex operation
   •   Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check
   •   (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
6. Performance :  100-Gbps line-rate throughput per port
7. Options :Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card
8. Reliability and availability :Line card online insertion and removal (OIR) support without affecting the system
9. Physical dimensions (H x W x D); weight :14 x 1.72 x 20.5 in.; 14 lb (35.56 x 4.37 x 52.07 cm; 6.35 kg)
10. Network Equipment Building Standards (NEBS) :
    • Cisco ASR 9000 Series Routers are designed to meet:
    •   SR-3580: NEBS Criteria Levels (Level 3)
    •   GR-1089-CORE: NEBS EMC and Safety
    •   GR-63-CORE: NEBS Physical Protection
11. Operating temperature (nominal) :41 to 104ºF (5 to 40ºC)
12. Operating temperature (short-term) :23 to 131ºF (-5 to 55ºC) Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period).
13. Operating humidity (nominal) (relative humidity) :10 to 85%
14. Storage temperature :-40 to 158ºF (-40 to 70ºC)
15. Storage (relative humidity) :5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
16. Operating altitude :-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
17. ETSI standards :
    • Cisco ASR 9000 Series Routers are designed to meet:
    •   EN300 386: Telecommunications Network Equipment (EMC)
    •   ETSI 300 019 Storage Class 1.1
    •   ETSI 300 019 Transportation Class 2.3
    •   ETSI 300 019 Stationary Use Class 3.1
    •   EN55022: Information Technology Equipment (Emissions)
    •   EN55024: Information Technology Equipment (Immunity)
    •   EN50082-1/EN-61000-6-1: Generic Immunity Standard
18. EMC standards :
    • Cisco ASR 9000 Series Routers are designed to meet:
    •   FCC Class A
    •   ICES 003 Class A
    •   AS/NZS 3548 Class A
    •   CISPR 22 (EN55022) Class A
    •   VCCI Class A
    •   BSMI Class A
    •   IEC/EN 61000-3-2: Power Line Harmonics
    •   IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
19. Immunity :
    • Cisco ASR 9000 Series Routers are designed to meet:
    •   IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
    •   IEC/EN-61000-4-3: Radiated Immunity (10V/m)
    •   IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
    •   IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
    •   IEC/EN-61000-4-5: Signal Ports (1kV)
    •   IEC/EN-61000-4-5: Surge DC Port (1kV)
    •   IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
    •   IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
    •   IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
20. Safety :

    • Cisco ASR 9000 Series Routers are designed to meet:
    •   UL/CSA/IEC/EN 60950-1
    •   IEC/EN 60825 Laser Safety
    •   ACA TS001
    •   AS/NZS 60950
    •   FDA - Code of Federal Regulations Laser Safety
    Cisco A9K-2X100GE-SE ASR 9000 2x 100GB CFP (Service Edge) Router Line Card
21.  A9K-2X100GE-SE Datasheet
