Supermicro 2028TP-HTTR SuperServer 2U 4-Node
Call: 877-263-8436 to start your custom build.
The Supermicro 2028TP-HTTR SuperServer is a powerful 2U 4-node computing platform designed for high-density data center environments, cloud infrastructure, and enterprise workloads. Built to support Intel Xeon processors with flexible memory and storage configurations, the 2028TP-HTTR delivers exceptional performance, scalability, and energy efficiency. Each node operates independently, allowing organizations to maximize compute power within a compact rack footprint while maintaining simplified management and reliability. Ideal for virtualization, high-performance computing (HPC), and large-scale enterprise applications, custom-built Supermicro 2028TP-HTTR systems provide configurable CPU, RAM, and storage options tailored to meet the demands of modern data centers.
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
3. 1x PCI-E 3.0 x16 Low-profile slot and 1x "0 slot"
4. Intel® X540 Dual port 10GBase-T LAN
5. Integrated IPMI 2.0 with KVM and Dedicated LAN

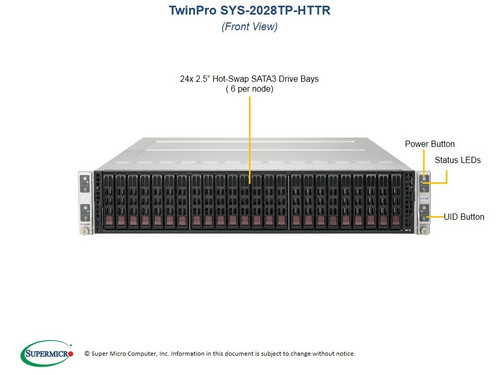

6. 6x 2.5" Hot-swap SATA HDD Bays
7. 2000W Redundant Power Supplies
| System Overview | |
|---|---|
| System Architecture | 4 Independent Nodes per System |
| Motherboard (per Node) | Supermicro Super X10DRT-PT |
| Form Factor | 2U Rackmount |
| Chassis Model | CSE-217HQ+-R2K04B |
| Processor | |
| CPU Support | Intel Xeon E5-2600 v4 / v3 Family |
| Socket | Dual Socket R3 (LGA 2011) |
| Max Cores | Up to 22 cores per CPU |
| Cache | Up to 55MB |
| System Bus | QPI up to 9.6 GT/s |
| TDP | Up to 145W |
| Note | BIOS v2.0 or later required for full CPU support |
| Memory (per Node) | |
| DIMM Slots | 16x 288-pin DDR4 |
| Maximum Capacity | Up to 2TB ECC 3DS LRDIMM / 512GB ECC RDIMM |
| Memory Type | 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM |
| Supported DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB |
| Voltage | 1.2V |
| Error Detection | ECC single-bit error correction |
| Onboard Devices (per Node) | |
| Chipset | Intel C612 |
| SATA Controller | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| BMC | ASPEED AST2400 |
| IPMI | IPMI 2.0 with KVM-over-LAN and Virtual Media |
| Networking | Intel X540 Dual Port 10GBase-T |
| Management LAN | Realtek RTL8201N Dedicated IPMI Port |
| Graphics | ASPEED AST2400 BMC |
| I/O Ports (per Node) | |
| LAN | 2x RJ45 10GBase-T |
| Management LAN | 1x Dedicated RJ45 IPMI |
| USB | 2x USB 3.0 (rear) |
| Video | 1x VGA |
| Serial | 1x UART 16550 port + 1 internal header |
| SATA | 6x SATA3 (6Gbps) |
| Other | SATADOM support |
| Expansion (per Node) | |
| PCIe Slots | 1x PCI-E 3.0 x16 Low-Profile |
| Zero Slot | 1x x16 "0-slot" |
| Note | Both CPUs required for full PCIe functionality |
| Storage (per Node) | |
| Drive Bays | 6x 2.5" Hot-Swap SAS/SATA |
| Cooling | |
| Fans | 4x 80mm Heavy-Duty PWM Fans with Automatic Speed Control |
| Power Supply | |
| Power Supply Type | Redundant 2000W Power Supplies with PMBus |
| Efficiency | 96% Titanium |
| Max +12V Output | Up to 166.7A |
| +5Vsb | 1A |
| Chassis Specifications | |
| Width | 17.25" (438mm) |
| Height | 3.47" (88mm) |
| Depth | 28.75" (730mm) |
| Net Weight | 72 lbs (32.7 kg) |
| Gross Weight | 90 lbs (40.9 kg) |
| Front Panel | |
| Buttons | Power On/Off, UID |
| LED Indicators | Power Status HDD Activity 2x Network Activity UID Indicator |
| BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Features | Plug & Play, APM 1.2, PCI 2.2, ACPI 1.0/2.0, USB Keyboard Support, SMBIOS 2.3, UEFI |
| Environmental Specifications | |
| Operating Temperature | 10°C – 35°C (50°F – 95°F) |
| Non-Operating Temperature | -40°C – 70°C |
| Operating Humidity | 8% – 90% (non-condensing) |
| Non-Operating Humidity | 5% – 95% (non-condensing) |
| Compliance | RoHS Compliant |
