Ruckus ICX7150-48ZP-E2X10G 16x 2.5GB PoH/PoE 32x 1GB PoE 6x SFP 2x SFP Switch
ICX7150-48ZP-E2X10G-Ref Overview

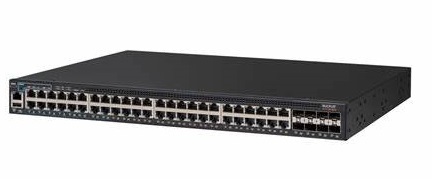

The Ruckus ICX 7150-48ZP 48-port switch is a high-performance switch that offers Multigigabit technology (IEEE 802.3bz) to match the highest performing 802.11ac Wave 2 wireless access points available. It has dual redundant, hot-swappable power supplies and fans, and up to 8x10 GbE uplink/stacking ports. The switch offers 16 Multigigabit (100Mbps/1Gbps/2.5Gbps) ports, each with Power-over-HDBaseT (PoH) up to 90 watts, plus 32 10/100/1000 Mbps ports with PoE+. With a maximum PoE budget of 1480 watts, this switch delivers the power and performance to drive PoE+ power to all 48 ports
Specs
The ICX7150-48ZP-E2X10G is a high-performance, resilient, and power-efficient Ethernet switch from Ruckus Networks.
- Switching Capacity: Maximum of 304 Gb/s.
- Ports: It has 48 1 GbE RJ45 ports, 8 1 GbE SFP ports, 8 10 GbE SFP+ ports, and 16 1/2.5 GbE RJ45 ports.
- PoE Power Budget: Maximum of 1480 W.
- Stacking: Supports up to 12 switches per stack.
- Aggregate Stack Bandwidth: Maximum of 480 Gb/s.
- Redundant Power Option: Yes.
- Hot Swap Internal Power Supplies & Fans: Yes.
- 802.3bt2 (90 W PoE Power per Port): Yes.
- EEE (Energy Efficient Ethernet): Yes.
This switch is designed to match the highest performing 802.11ac Wave 2 wireless access points available, with dual redundant, hot-swappable power supplies and fans, and up to 8x10 GbE uplink/stacking ports. It offers Multigigabit technology (IEEE 802.3bz) and has 16 Multigigabit (100Mbps/1Gbps/2.5Gbps) ports, each with Power-over-HDBaseT (PoH) up to 90 watts and 802.3bt ready, plus 32 10/100/1000 Mbps ports with PoE+. With a maximum PoE budget of 1480 watts, this switch delivers the power, and performance, to drive PoE+ power to all 48 ports
