Overview

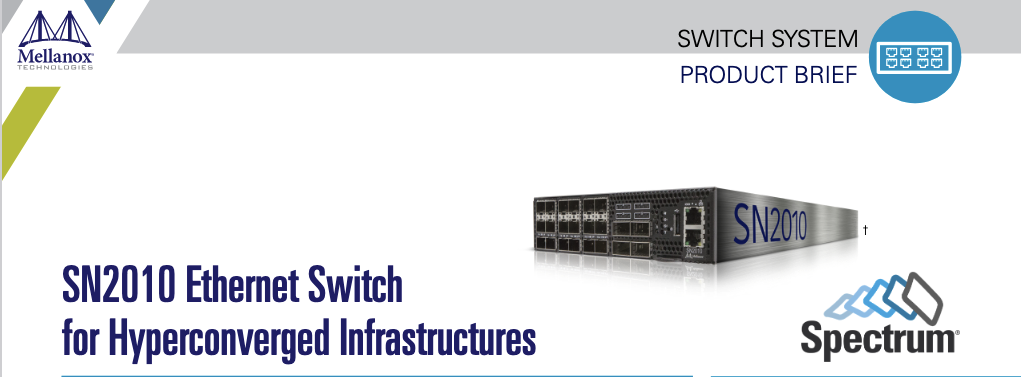

The MSN2010-CB2F is a high-performance, compact 1-rack-unit (1U) open Ethernet switch powered by a Mellanox Spectrum ASIC. It delivers dense 25 GbE server connectivity alongside 100 GbE uplinks in a short-depth, half-width form factor with efficient power-to-port-to-connector (P2C) airflow—ideal for hyperconverged and storage-heavy data center environments.
- Ports & Interfaces
- 18 × 25 GbE SFP28 ports for server access
- 4 × 100 GbE QSFP28 ports for uplinks or breakouts
- Performance
- Switching capacity: approximately 1.7 Tbps
- Forwarding rate: up to 1.26 billion packets per second (Bpps)
- Ultra-low latency: around 300 ns between 100 GbE ports
- Hardware & Resources
- On-board x86 quad-core CPU; supports running containerized applications directly on the switch
- Includes 2 × AC power supplies for redundancy
- Compact, short-depth chassis with half-width (1/2U) design
- Thermal Design
- P2C (Power-to-Connector) airflow direction
- Efficient heat dissipation—optimized for dense rack layouts
- Buffer & Memory
- Packet Buffer: 16 MB
- Memory: 8 GB RAM, 16 GB Flash/SSD depending on configuration
- Management & Expansion
- Comes with Mellanox Onyx OS (OPEN Ethernet) software with full CLI and GUI capabilities
- Open platform supports automation, scripting, and orchestration
- Physical Size & Power
- Dimensions: approximately 1.72″ H × 7.87″ W × 20″ D (43.8 mm × 200 mm × 508 mm)
- Weight: around 10 lb (4.5 kg)
- Typical power consumption: 57 W (with passive cables)
- Additional Features
- Half-width chassis allows side-by-side installation of two units in a single rack slot
- Compatible with standard 1U short-depth rails (sold separately)
- Supports advanced functions such as MLAG (multi-chassis link aggregation), VXLAN/VTEP overlays, and full Layer 2/L3 feature set
- Part Number : MSN2010-CB2F
- Condition : Seller refurbished
1-Year
