Overview

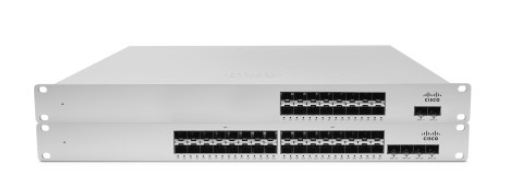

The Cisco Meraki 410 series extends cloud management across the aggregation layer for medium-size networks with our 1/10G fiber aggregation switches. As with our access layer switches, our aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Available in 2 different port densities, 16 or 32 x 1G SFP, both of which include 10Gb SFP+ ports and 2 dedicated hardware stacking ports capable of providing up to 160Gbps stacking bandwidth to support small and medium-sized enterprise environments.
- Part Number :MS410-32-HW
- Condition : New
- Ports & uplinks: 32 × 1GbE SFP ports; 4 × 10GbE SFP+ uplinks; 2 × 40G hardware stacking ports; 1 × dedicated management interface
- Switching capacity: 144 Gbps non-blocking; Layer 3 routing supported
- Stacking: Physical stacking up to 160 Gbps stack bandwidth; warm spare capable
- Hardware & serviceability: Dual hot-swappable power supplies; hot-swappable fans
- Cloud management: Managed via Meraki Dashboard with remote packet capture, automatic firmware updates, SNMP/Syslog, 802.1X, DHCP snooping, DAI, VLAN tagging, and storm control
- Physical: 1U rackmount; 1.74 × 17.33 × 19 in (4.37 × 48.46 × 51.66 cm); ~12.6 lb (5.7 kg)
- Power: 250 W AC PSU; typical load ~50 W (idle) / ~85 W (max) per unit
- Environmental: Operating temperature 32–113°F (0–45°C); humidity 5–95% non-condensing
- • Managed via Cisco Meraki Dashboard
• Remote Packet Capture Tools via Meraki Dashboard
• Automatic Firmware upgrades
• SNMP/Syslog Integration
• IPv4/6 ACL support
• 802.1q VLAN tagging
• Broadcast Storm Control
• Dynamic ARP Inspection / DHCP Snooping
• 802.1X Authentication
• 16 or 32 x 1000 Mbps SFP
• 2 or 4 x 1000/10000 Mbps SFP+
• Dual Dedicated 40G Hardware Stacking Ports
• L3 Switching including OSPF
• Hot Swappable Power Supplies and Fans
• Warm Spare capable
