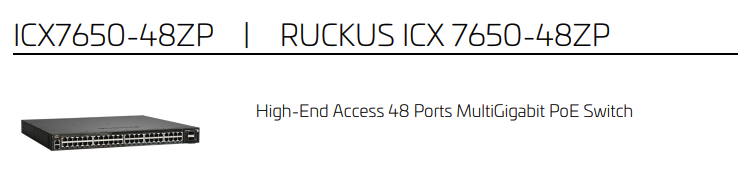

NEW Ruckus Brocade ICX7650-48ZP-E 48x MultiGB PoE+ RJ45 4x QSFP+ 1x Slot Switch
Overview
The Ruckus ICX7650-48ZP-E is a high-performance, stackable Ethernet switch designed to meet the demands of modern enterprise networks, particularly in environments requiring multigigabit connectivity and high Power over Ethernet (PoE) capabilities.
This switch is ideal for organizations seeking to future-proof their network infrastructure with high-speed, multigigabit access and robust PoE capabilities, supporting the latest wireless access points and other powered devices.
Specifications
- Ports:
- 24 × 10/100/1000 Mbps RJ-45 PoE+ ports
- 24 × 100 Mbps/1/2.5/5/10 Gbps RJ-45 PoE+/PoH/UPoE ports
- 4 × 40 GbE QSFP+ uplink/stacking ports
- 1 × expansion slot for optional modules (e.g., 1 × 100 GbE, 2 × 40 GbE, or 4 × 10 GbE)
- Ruckus Networks
- Performance:
- Switching capacity: 1.128 Tbps
- Forwarding capacity: 840 Mpps
- Aggregate stack bandwidth: up to 2.4 Tbps
- Ruckus Networks
- Power over Ethernet (PoE):
- Supports PoE, PoE+, and 802.3bt (up to 90 W per port)
- Maximum PoE power budget: 1,500 W
- Ruckus Networks
- Stacking:
- Supports stacking of up to 12 switches
- Stacking ports: 4 × 40 GbE QSFP+ (also usable as uplinks)
- Ruckus Networks
- Layer 3 Features:
- Supports static routing, RIP, OSPF, BGP, and VRF
- Supports OpenFlow with hybrid port mode
- Ruckus Networks
- Additional Features:
- sFlow support for network monitoring
- Energy Efficient Ethernet (EEE)
- MACsec for enhanced security
- Campus Fabric technology support
- Ruckus Networks
- Physical Specifications:
- Form factor: 1U rack-mountable
- Dimensions (H × W × D): 1.73 × 17.32 × 16.02 inches (4.4 × 44 × 40.7 cm)
- Weight: approximately 16.53 lbs (7.5 kg
