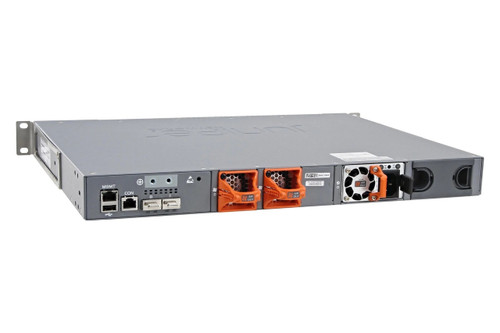

EX3400-24P-New Overview
EX3400-24P is a Juniper EX3400 switch with 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.Quick spec of EX3400-24P-New
- SKU : EX3400-24P
- Ports : 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included)
- Backplane speed : 160 Gbps
- Data rate : 288 Gbps
- Throughput : 214 Mpps (wire speed)
- Dimensions (W x H x D) : 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit
EX3400-24P-New Specification
- Description :EX3400 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included)
- Form factor :Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device
- Dimensions (W x H x D) :17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit
- Backplane speed :160 Gbps
- Data rate :288 Gbps
- Throughput :214 Mpps (wire speed)
- 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities :2
- 100GBASE C form-factor pluggable transceiver (CFP) port densities :N/A
- Resiliency :Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration
- Operating system :Junos OS
- Traffic monitoring :sFlow
- Quality-of-service (QoS) queues/port :8 unicast/4 multicast
- MAC addresses :32,000
- Jumbo frames :9216 bytes
- IPv4 unicast/multicast routes :36,000/4,000
- IPv6 unicast/multicast routes :18,000/2,000
- Number of VLANs :4,096
- ARP entries :16,000
