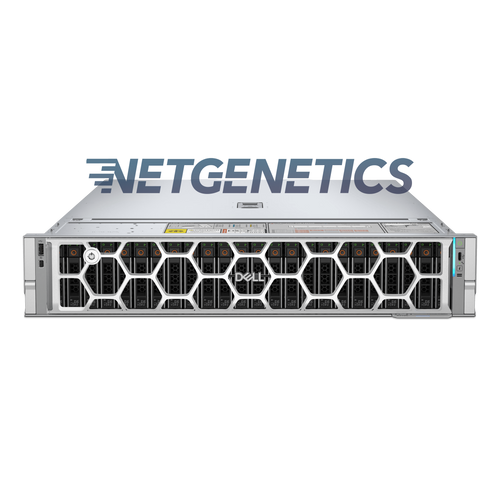

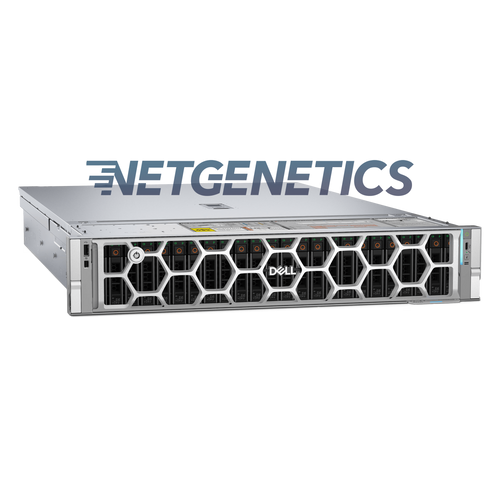

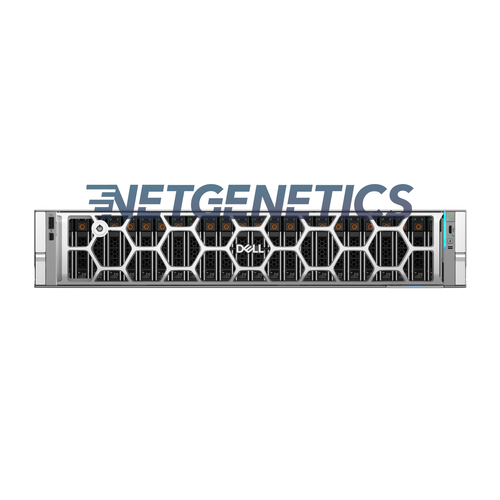

NEW Dell PowerEdge R7725 Server 2RU Custom Build Call: 877-263-8436

AMD EPYC 9005 series
• Dual 5th generation CPUs
• Up to 192 cores per CPU

Memory Slots:

• 24 x DDR5 DIMM slots

Memory Speed:

• Up to 6000 MT/S

Maximum Memory Configuration:

• 6TB MAX

Front Bays:
• 12 x 3.5-inch SAS/SATA
• 8 x 2.5-inch Universal/ 16 x 2.5-inch SAS/SATA/ 24 x 2.5-inch SAS/SATA
• 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID
• 8 x EDSFF E3.S/ 16 x EDSFF E3.S/ 32 x EDSFF E3.S/ 40 x EDSFF E3.S

• Internal Controllers: PERC H365i,H965i, H975i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
• External HBA (non-RAID): N/A

Front:

• 1 x USB 2.0 Type-A (optional LCP KVM)
• 1 x USB 2.0 Type-C (HOST/BMC Direct)
• 1 x Mini DisplayPort (optional LCP KVM)

Rear:

• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 3.1 Type A
• 1 x VGA

Internal:

• 1 x USB 3.1 Type A

Up to eight PCIe slots* (x8 or x16 connector)
• Slot 1: 1 x8 Gen5 Full Height
• Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
• Slot 3: 1 x16 Gen5 Full Height or Low Profile
• Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height* or 1 x16 OCP 3.0
• Slot 5: 1 x8 Gen5 Full Height
• Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
• Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
• Slot 9: 1 x16 Gen5 Full Height or Low Profile

GPU Options:

• Up to 2 x 400W DW; Up to 6 x 75W SW

Enclosure

Height: 86.8 mm (3.42 inches)

Width: 482 mm (18.98 inches)

Depth: 801.51 mm (31.55 inches) without bezel

Depth: 802.4 mm (31.59 inches) with bezel

• Platinum 800W, 1100W
• Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC, 1800W, 2400W, 3200W, 3200W 277Vac & HVDC
• Telco: 1400W -48VDC

Embedded:

• iDRAC10
• iDRAC RESTful API with Redfish
• iDRAC Direct
• Racadm CLI

OpenManage SW:

• OpenManage Enterprise (OME)
• OME Power Manager
• OME Services
• OME Update Manager
• OME APEX AIOps Observability
• OME Integration for VMware vCenter (with VMware Aria Operations)
• OME integration for Microsoft System Center
• OpenManage Integration for Windows Admin Center

Integrations:

• OpenManage Integrations
• RedHat Ansible Collections
• Terraform Providers

Security:

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown
• TPM 2.0 FIPS, CC-TCG certified
• Chassis Intrusion Detection
