NEW Cisco QSFP-100G-SM-SR 100GB BASE-CWDM4 1331nm Lite SMF QSFP28 Transceiver

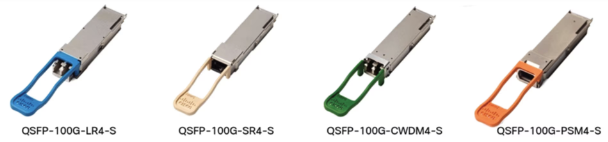

The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor
- Form Factor : QSFP28 Transceiver Plug In Module - 100GBASE-CWDM4
- Speed : 100 Gbps
- Model Number : QSFP-100G-SM-SR
- Condition : New
-
General Description
- Product Name: Cisco QSFP-100G-SM-SR
- Form Factor: QSFP28
- Data Rate: 100 Gbps
- Interface: Optical
Key Features
- Transmission Distance: Typically supports up to 2 km over single-mode fiber (SMF).
- Wavelength: Uses standard wavelengths suitable for single-mode fiber, typically around 1310 nm.
- Connector Type: LC Duplex.
- Power Consumption: Low power consumption, typically less than 3.5W.
- Digital Diagnostic Monitoring: Provides real-time monitoring of the transceiver’s operating conditions.
Optical Characteristics
-
Transmitter:
- Wavelength Range: Around 1310 nm.
- Output Power: Typically within a range specified by the standard for short-reach single-mode transceivers.
- Extinction Ratio: Meets IEEE 802.3 standards for 100G Ethernet.
-
Receiver:
- Sensitivity: Designed to detect signals within the expected power range for 100G short-reach links.
- Overload: Can handle optical power above the minimum receiver sensitivity.
Electrical Characteristics
- Power Supply Voltage: 3.3V typical.
- Power Consumption: Typically under 3.5W.
Standards and Compliance
- IEEE 802.3: Compliance with 100GBASE-SR4 standards.
- RoHS: Compliant with EU directives for the restriction of hazardous substances.
- EMC: Compliant with relevant electromagnetic compatibility standards.
Mechanical and Environmental Specifications
- Operating Temperature: 0°C to 70°C for commercial versions; extended temperature range available for specific models.
- Storage Temperature: -40°C to 85°C.
- Dimensions: Standard QSFP28 dimensions.
Applications
- Data Centers: High-density 100G connections between switches, routers, and servers.
- Enterprise Networks: Backbone and aggregation layers.
- Service Providers: High-speed optical links within telecom infrastructure.
