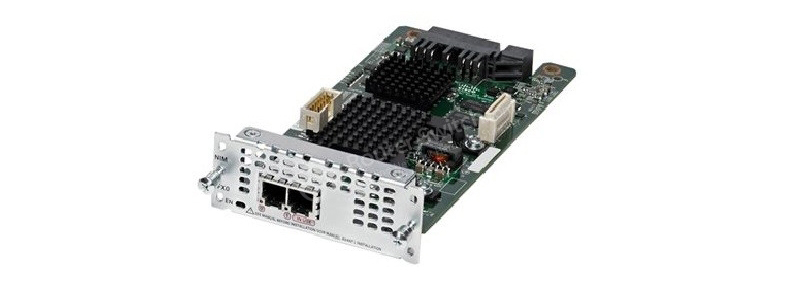

Cisco NIM-2CE1T1-PRI ISR 4000 Series 2x T1/E1 Router Module
NIM-2CE1T1-PRI Overview
The Cisco® Fourth-Generation 2-Port T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) NIM-2CE1T1-PRI supportS data and voice applications on the Cisco 4000 Integrated Services Routers. These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide superior flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface.
NIM-2CE1T1-PRI Specification
|
Product Number
|
NIM-2CE1T1-PRI
|
|
Product Description
|
2 port Multi-flex Trunk Voice/Channelized Data T1/E1 Module
|
|
Number of Ports
|
2
|
|
Clear-Channel Data
|
Yes
|
|
MFT Packet Voice
|
Yes
|
|
Unstructured E1 (G.703) Support
|
Yes
|
|
Channelized Data
|
Yes
|
|
Dimensions (H x W x D)
|
1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
|
|
Weight
|
0.42 lb (191g)
|
|
Environmental
|
â—Ź Operating temperature: 0 to 50°C (32 to 122°F)
â—Ź Storage temperature: -20 to +65°C (-4 to 148°F)
â—Ź Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
|
|
T1 Compliance (partial list)
|
â—Ź TIA-968-A
â—Ź CS-03
â—Ź Jate
â—Ź ANSI T1.403
|
|
E1 Compliance (partial list)
|
â—Ź TBR4, TBR12, and TBR13
â—Ź ITU-T G.703, G.704, G.823, and I.431
â—Ź S016 (Australia)
|
