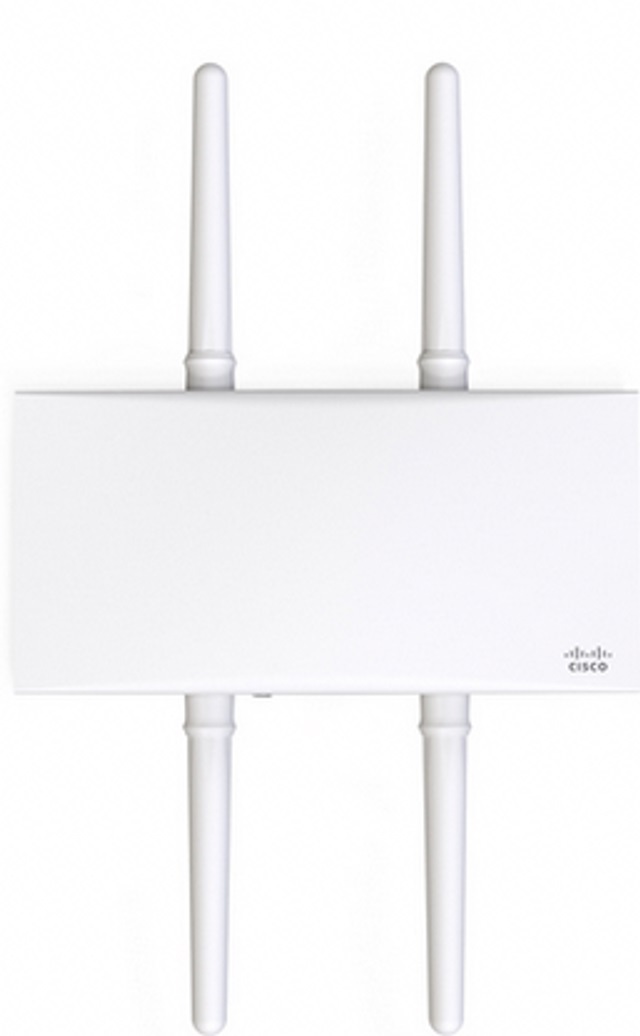

NEW Cisco Meraki MR76-HW 802.11ax (WiFi6) MU-MIMO Outdoor Unclaimed Access Point***Annetennas are not included
Overview
The MR76 is a cloud-managed 2x2:2 802.11ax access point designed for next-generation deployments in offices, schools, hospitals, shops, and hotels. It raises the bar for wireless performance and efficiency.Offers high throughput, enterprise-grade security, and simple management.
Specifications
- High Performance: Provides a maximum of 1.5 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios.
- Real-time WIDS/WIPS: A dedicated third radio for real-time wireless intrusion detection and prevention.
- Bluetooth Scanning and Beaconing: Integrated fourth radio delivers Bluetooth functionality.
- Enterprise Security: Ensures secure connectivity.
- Application-aware Traffic Shaping: Optimized for voice and video.
- Self-configuring Deployment: Managed via the intuitive Meraki cloud interface.
- Sleek Design: Blends seamlessly into office environments.
- Dual-radio aggregate frame rate of up to 1.5 Gbps.
- 5 GHz 2x2:2 radio and 2.4 GHz 2x2:2 radio offer a combined dual-radio aggregate frame rate of 1.5 Gbps, with up to 1,201 Mbps in the 5 GHz band and 286 Mbps in the 2.4 GHz band.
- Technologies like transmit beamforming and enhanced receive sensitivity allow the MR76 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients, from each AP.
- Antenna Options : External Antennas - Not Included - Options are MA-ANT-20-MA-ANT-21 MA-ANT-23; MA-ANT-25 and MA-ANT-27
| Wireless LAN Standard: | IEEE 802.11 a/b/g/n/ac/ax | Network Band: | Dual Band |
| Frequency Band: | 5 GHz | Frequency Band: | 2.40 GHz |
| Total Number of Antennas: | 4 | Number of External Antennas: | 4 |
| Indoor/Outdoor: | Outdoor | Wireless Transmission Speed: | 1.70 Gbit/s |
| MIMO Technology: | Yes | Beamforming Technology: | Yes |
| Data Encryption: | Yes | Encryption Standard: | AES |
| Encryption Standard: | WPA3-ENT | Encryption Standard: | TKIP |
| Encryption Standard: | WEP | Encryption Standard: | WPA2-ENT |
| Encryption Standard: | WPA | Encryption Standard: | WPA2-PSK |
| Encryption Standard: | WPA3 | Encryption Standard: | WPA3-Personal |
| Ingress Protection (IP) Rating: | IP67 | ||
| Interfaces/Ports |
|||
| Ethernet Technology: | Gigabit Ethernet | PoE (RJ-45) Port: | Yes |
| Number of Network (RJ-45) Ports: | 1 | PoE PD Port: | Yes |
| Power Consumption: | 15 W | ||
| Physical Characteristics |
|||
| Antenna Form Factor: | External | Height: | 2.2 |
| Width: | 11.8 | Depth: | 6 |
