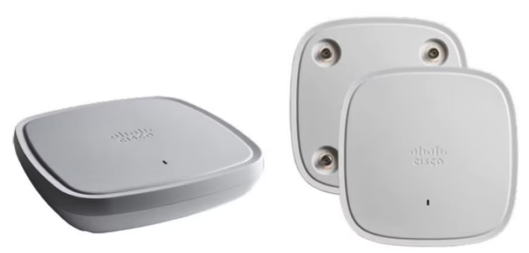

New Cisco C9120AXE-B Catalyst 9120AX 802.11ax (Wi-Fi 6) 4x4 MU-MIMO Ext Ant WAP
The Cisco C9120AXE-B is a model from the Cisco Catalyst 9120 Series, which is designed to support the latest Wi-Fi 6 (802.11ax) standard. This access point is intended for use in both indoor and rugged environments, offering high performance, reliability, and advanced security features.Ideal for high-density environments such as large enterprise offices, educational institutions, and industrial settings. Suitable for deployments requiring robust and flexible wireless coverage with support for the latest Wi-Fi 6 features.
- Wireless Standards:
- Wi-Fi 6 (802.11ax), backward-compatible with 802.11a/b/g/n/ac.
- Operates in dual-band mode: 2.4 GHz and 5 GHz.
- Radio Configuration:
- 4x4:4 MIMO (Multiple Input, Multiple Output) on both 2.4 GHz and 5 GHz bands.
- Maximum data rates:
- 2.4 GHz: Up to 1.148 Gbps
- 5 GHz: Up to 4.8 Gbps
- External Antenna Ports:
- External antenna model (E) with multiple antenna ports, offering flexibility in antenna selection and deployment.
- Ports:
- 1 x Multigigabit Ethernet port (1/2.5/5 Gbps), supporting Power over Ethernet (PoE/PoE+).
- 1 x 10/100/1000 Mbps Ethernet port for additional connectivity.
- 1 x USB 2.0 port for IoT applications and future use.
- Powering Options:
- Power over Ethernet (PoE): 802.3at (PoE+) compliant, drawing up to 30W.
- Supports 802.3af with limited functionality.
- Security Features:
- WPA3 support for enhanced security.
- Integrated Cisco Trust Anchor and Secure Boot for device security.
- Cisco DNA Center and Cisco Embedded Wireless Controller (EWC) for simplified network management and policy enforcement.
- Advanced Features:
- OFDMA and MU-MIMO for efficient handling of multiple devices simultaneously.
- BSS Coloring to reduce interference between overlapping networks.
- Target Wake Time (TWT) to improve battery life for IoT devices.
- Environmental Specifications:
- Designed for deployment in diverse environments, including areas with a high concentration of users or IoT devices.
- Physical Specifications:
- Dimensions: Approximately 8.3 x 8.3 x 2.0 inches (21.08 x 21.08 x 5.08 cm).
- Weight: Around 2.5 lbs (1.13 kg).
- Part Number : C9120AXE-B
- Condition : New
