C8500-12X4QC-New Overview
The C8500-12X4QC is a product from the Cisco Catalyst 8500 series. It comes with 12-port 1/10GE, 2-port 40/100GE, and 2-port 40GE. This high-performance device is designed to meet the needs of demanding network environments.The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.
Quick spec of C8500-12X4QC-New
- Product Code: C8500-12X4QC
- Manufacturer: Cisco
- Description: Cisco Catalyst 8500, 12-port 1/10GE, 2-port 40/100GE, 2-port 40GE
C8500-12X4QC-New Specification
- Model:C8500-12X4QC
- Product Description:Cisco Catalyst 8500, 12-port 1/10GE, 2-port 40/100GE, 2-port 40GE
- Ethernet Ports:- 12 x 1/10 Gigabit Ethernet - 2 x 40/100 Gigabit Ethernet - 2 x 40 Gigabit Ethernet
-
The C8500-20X6C platform (Figure 1) allows all ports to be enabled simultaneously. It offers:
â—Ź 20x 1/10GE ports
â—Ź 6x 40/100GE ports

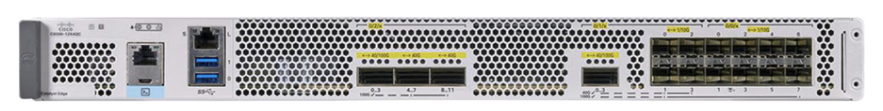

The C8500-12X4QC platform (Figure 2) allows for a maximum of 240GE ports to be enabled simultaneously. It offers:

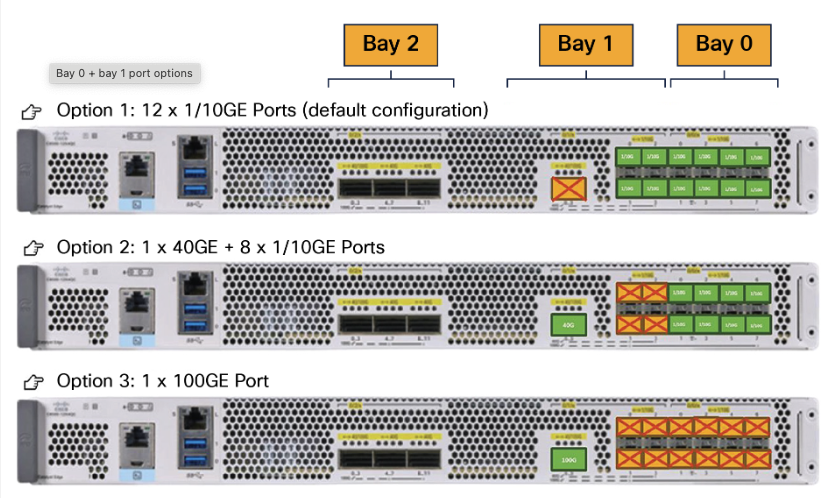

â—Ź 12x 1/10GE ports (can increase to 24x 1/10GE if using 4x10GE breakout from QSFP 40G ports when not in SD-WAN mode)
â—Ź 3x 40GE ports
â—Ź 2x 40/100GE ports
