Overview

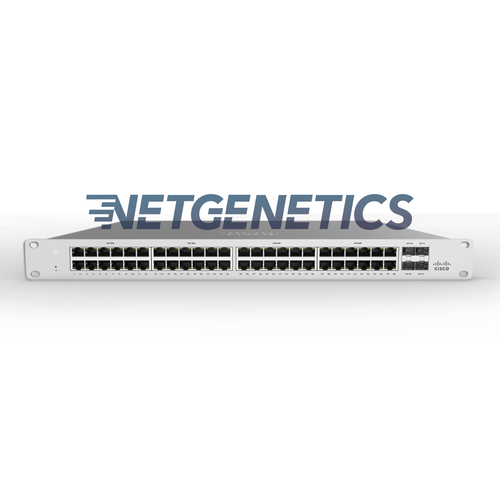

The Cisco MS130-48P-HW Meraki MS130 Access Switch is a powerful and reliable 48-port network solution designed for high-performance network management and efficiency. Equipped with Power over Ethernet (PoE) capabilities, it ensures seamless integration and enhanced connectivity for enterprise-level applications. This switch features 740W PoE power and 1GbE fixed uplinks, making it suitable for large-scale networks that require stability and speed.

Brand: Cisco
Model Number: MS130-48P-HW
Category: Network Switch
Switch Type: 48-Port PoE, Gigabit Ethernet
Power Budget: 740W PoE Support
Interfaces & Ports
Comprehensive Port Availability
Total Network Ports: 48
Dedicated Uplink Port: Yes
Stacking Capability: Stack Port Available
Port Types: Gigabit Ethernet PoE+, 10-Gigabit Expansion Slots
Port Details
48 x RJ-45 Gigabit Ethernet PoE+ Ports
4 x 10-Gigabit SFP+ Expansion Slots
Media Compatibility & Performance
Supported Media Types
Optical Fiber
Twisted Pair
Network Technology Standards
Ethernet Technology: 10 Gigabit Ethernet
Network Speed: 10/100/1000Base-T, 10GBase-X
I/O Expansion Capabilities
Expansion Slot Information
Total Expansion Slots: 4
Slot Type: SFP+ (10G SFP+ Slots)
Number of SFP+ Slots: 4
Network and Communication Standards
Layer and Protocol Support
Layer: Layer 2
IEEE Standards:
802.1Q - VLAN Tagging
802.1x - Network Access Control
Management & Protocol Compatibility
Switch Management Features
Fully Manageable Switch
Advanced Network Monitoring and Configuration Options
Power and PoE Specifications
Power over Ethernet (PoE) Capabilities
Power Budget: 740W
PoE Ports: Available on all 48 RJ-45 Ports
Power Source and Redundancy
Power Supply: Included
Redundant Power Support: Yes
Physical Specifications
Form Factor and Mounting
Design: Rack-Mountable for Optimized Server Room Space
Included Accessories and Contents
MS130-48P-HW Ethernet Switch
Power Supply Unit
Getting Started Guide for Easy Setup
Ideal Applications and Use Cases
Recommended Environments
Office and Business Networks
Campus Infrastructure
VoIP Phone Support for Communication Networks

48 PoE Ports: The switch supports 48 Gigabit Ethernet ports, each capable of providing PoE power to connected devices.
740W PoE Power Budget: With a total PoE power budget of 740 watts, it can efficiently power multiple devices such as IP phones, surveillance cameras, and access points.
1GbE Fixed Uplinks: The 1GbE fixed uplinks offer consistent and reliable network performance, ensuring optimal data flow across connected devices.
Cloud-Managed: Managed through the Meraki cloud platform, this switch provides streamlined, centralized management and monitoring.
Advanced Security Features: The switch includes advanced Layer 2 features and security protocols to protect data and manage access.
Power over Ethernet (PoE) Capability
One of the significant advantages of the Cisco MS130-48P-HW is its robust PoE capability. With a power budget of 740W, the switch supports high-density PoE deployments. This capability ensures that connected devices, including wireless access points, IP cameras, and VoIP phones, receive power and data through a single Ethernet cable. This feature simplifies infrastructure, reduces cabling costs, and enhances deployment flexibility.
Deploying the MS130-48P-HW means leveraging efficient power management and minimizing the need for external power supplies, which contributes to a cleaner, more organized networking environment.
Advanced Networking Capabilities
The Cisco MS130-48P-HW is equipped with cutting-edge networking technologies that support seamless operations across various enterprise environments. Its support for Layer 2 protocols allows for enhanced data traffic control and network segmentation, leading to increased efficiency and reduced latency.
Layer 2 Protocols and VLAN Support
With full support for Layer 2 switching, the MS130-48P-HW includes essential features such as VLANs, STP (Spanning Tree Protocol), and LACP (Link Aggregation Control Protocol). This ensures reliable load balancing and redundancy, helping maintain network stability and performance.
Multiple VLAN configurations enhance network security by segmenting traffic into isolated groups, limiting broadcast domains, and reducing the risk of unauthorized access.
Reliable 1GbE Uplinks
The MS130-48P-HW’s 1GbE fixed uplinks provide a stable and high-speed backbone for the network. These uplinks help in managing data traffic efficiently, especially in enterprise setups where uninterrupted data flow is critical for business operations.
With these uplinks, businesses can connect to upstream routers, switches, and other core network components without compromising on speed or performance. This feature is essential for organizations that require consistent data transmission, whether for internal communications or external connections.
Benefits of Deploying Cisco Meraki MS130-48P-HW in Enterprise Networks
Scalable Network Management
The Cisco Meraki MS130-48P-HW switch is part of the broader Meraki ecosystem, which is known for its scalable, cloud-managed network solutions. The cloud management platform provides real-time visibility, configuration management, and automated alerts, allowing network administrators to monitor and optimize network performance from any location.
Additionally, the intuitive dashboard simplifies complex processes such as firmware updates, device onboarding, and access policy management. This centralized approach reduces the need for on-site IT support and enables streamlined operations.
Comprehensive Security Features
Security is paramount in modern networking, and the Cisco MS130-48P-HW is equipped with various advanced security measures to safeguard data. Some of these include:
Access Control Lists (ACLs): ACLs help define which devices or users have access to network resources, minimizing unauthorized access risks.
802.1X Authentication: The switch supports 802.1X port-based authentication, ensuring that only authorized devices can connect to the network.
DHCP Snooping and ARP Inspection: These features prevent man-in-the-middle attacks and IP address spoofing, adding another layer of protection.
Traffic Monitoring and Management
With integrated QoS (Quality of Service) capabilities, the MS130-48P-HW allows for the prioritization of mission-critical traffic, ensuring that high-priority applications maintain consistent performance. This feature is particularly valuable for organizations that rely on VoIP services, video conferencing, or other latency-sensitive applications.
Bandwidth management and traffic shaping features enable network administrators to optimize data flow and prevent network congestion, maintaining a high standard of user experience.
Energy Efficiency and Sustainability
In addition to its robust performance, the Cisco MS130-48P-HW is designed with energy efficiency in mind. The switch incorporates features such as Energy Efficient Ethernet (EEE) and intelligent power management to reduce energy consumption during periods of low activity. This helps enterprises minimize operational costs while supporting their sustainability goals.
Energy Efficient Ethernet (EEE)
Energy Efficient Ethernet technology allows the switch to dynamically adjust power usage based on traffic patterns, ensuring minimal energy wastage. By using EEE, the MS130-48P-HW helps decrease the total energy footprint of an organization’s networking infrastructure.
Technical Details and Deployment Scenarios
Technical Specifications
Port Count: 48 10/100/1000BASE-T Ethernet ports with PoE capability
Uplink Ports: 1GbE fixed uplinks for consistent network performance
PoE Power Budget: Total power budget of 740W for PoE-supported devices
Switching Capacity: High-performance switching capacity to support large data volumes
Cloud Management: Full integration with the Meraki dashboard for centralized management
Ideal Use Cases
The Cisco MS130-48P-HW is well-suited for a variety of deployment scenarios, including:
Large Enterprises: With its extensive PoE capacity and high port count, this switch can support hundreds of devices across different departments.
Educational Institutions: The MS130-48P-HW can efficiently power campus-wide networking needs, from IP cameras to Wi-Fi access points.
Retail Environments: Retail stores and shopping centers can benefit from the switch’s robust performance to maintain reliable POS systems and surveillance networks.
Healthcare Facilities: Ensures stable network connections for medical equipment and secure data transmission in clinics and hospitals.
Deployment Best Practices
When deploying the MS130-48P-HW, it is essential to consider strategic placement and configuration to maximize its performance. Ensuring that PoE-powered devices are evenly distributed across the switch’s ports can help balance power consumption and maintain consistent performance.
Integrating this switch into a larger Cisco Meraki network will also require appropriate VLAN setup and security configurations, tailored to the organization’s needs.
Maintenance and Upgrades
The MS130-48P-HW’s cloud-based management ensures that firmware updates and patches are automated, reducing maintenance overhead. Network administrators can schedule updates during non-peak hours, minimizing disruptions. This feature is essential for organizations seeking to maintain compliance and the latest security standards without intensive manual intervention.
