Overview

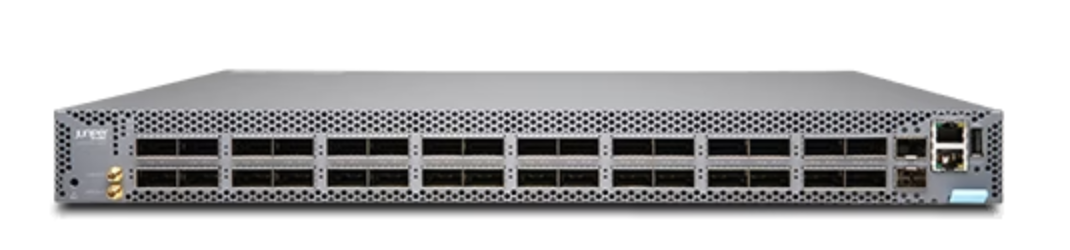

The QFX5130 line comprises high-density, cost-optimized, 400GbE 1 U switches based on Broadcom Trident 4 silicon. They’re ideal for environments where cloud services are being added, and they accommodate diverse data center, campus fabric, data center interconnect (DCI), and firewall cluster-to-fabric connection use cases.
QFX5130 switches are an optimal choice for spine-and-leaf deployments in enterprise, service provider, and cloud provider environments. They’re particularly suited to scale-out networks with applications dependent on sophisticated traffic-handling, offering in-band telemetry and dynamic traffic steering. With deployment versatility—from custom services delivery in provider networks to AI applications and scientific research—the platform brings future-proof flexibility to your data center network investment.
Specifications
- Form Factor: 1U rack-mountable
- Dimensions (W x H x D): 17.28 x 1.72 x 20.5 inches (43.8 x 4.3 x 52.07 cm)
- Weight: Approximately 22.5 lbs (10.2 kg)
- Airflow Direction: Back-to-front (AFO)
- Port Configuration:
- Total Ports: 56
- 48 x 100GbE SFP56-DD ports
- 8 x 400GbE QSFP-DD ports
- Maximum Port Density with Breakout Cables:
- 72 x 100/50/25GbE ports
- 74 x 10GbE ports
- Performance:
- Switching Capacity: Up to 8 Tbps
- Forwarding Rate: Up to 2.7 billion packets per second (Bpps)
- Latency: As low as 1000 nanoseconds (store and forward)
- Buffer and Scale:
- Packet Buffer: 82 MB shared buffer
- MAC Addresses: Up to 96,000
- IPv4 Routes: Up to 700,000
- IPv6 Routes: Up to 360,000
- VLANs Supported: Up to 4,000
- ARP Entries: Up to 32,000
- Power and Cooling:
- Power Consumption:
- Maximum Load: 587 W
- Typical Load: 238 W
- Power Supply Units (PSUs): Supports up to 2 PSUs for redundancy
- Cooling: Equipped with hot-swappable fans; airflow direction is back-to-front (AFO)
- Features:
- Layer 2 and Layer 3 Support: Advanced L2/L3 features, including EVPN-VXLAN for network virtualization
- Automation and Programmability: Supports zero-touch provisioning (ZTP), NETCONF, Juniper Extension Toolkit (JET), Junos Telemetry Interface, and Python scripting
- RoCEv2 Support: Enables efficient data transport for storage traffic over Ethernet
- IEEE 1588 PTP: Supports Precision Time Protocol for sub-microsecond timing accuracy
- QFX5130-32CD/QFX5130E-32CD: 32 x 400GbE QSFP-DD/QSFP+/QSFP28 and 2 x 10GbE SFP+
Throughput: Up to 25.6 Tbps (bidirectional) - QFX5130-48C: 48 x 100GbE SFP56-DD and 8 x 400GbE QSFP-DD
Throughput: Up to 16 Tbps (bidirectional) - QFX5130-48CM: 48 x 100GbE SFP56-DD and 8 x 400GbE QSFP-DD
Throughput: Upto 16 Tbps (Bidirectional) without MACsec and 9.6 Tbps (Bidirectional) with MACsec
