Fortinet Security

Fortinet FortiGate FortiSwitch FS-T1024F-FPOE Layer 2/3 POE 24 x 10G 5G 2.5G 1G

Shipping: Calculated at Checkout
$13,999.00

Overview The Fortinet FortiSwitch FS-T1024F-FPOE is designed for high-performance, secure, and scalable switching in enterprise and data center environments, o…

Adding to cart… The item has been added

Overview

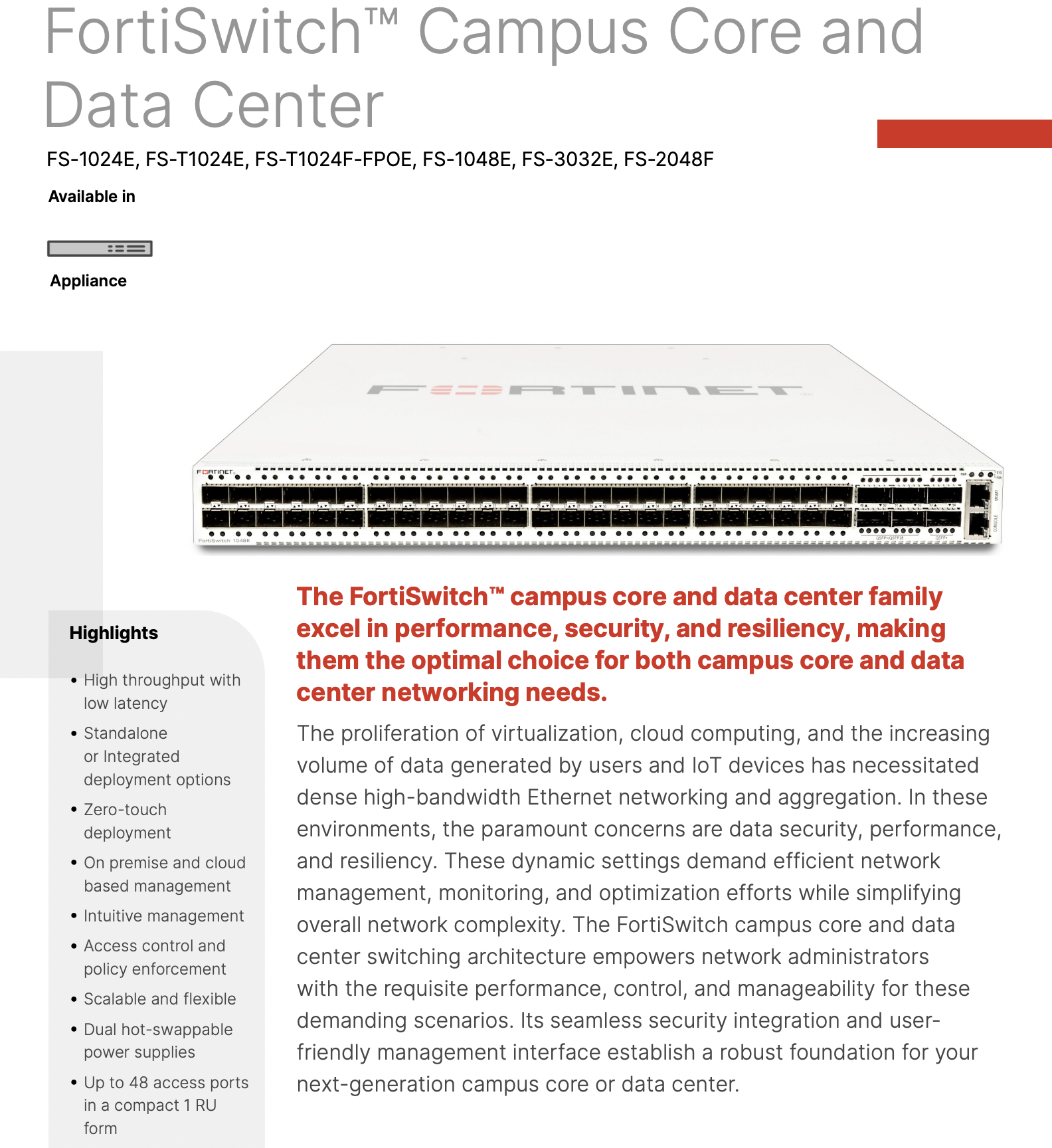

The Fortinet FortiSwitch FS-T1024F-FPOE is designed for high-performance, secure, and scalable switching in enterprise and data center environments, offering both PoE support and advanced Layer 2/3 features. The FortiSwitch™ campus core and data center family excel in performance, security, and resiliency, making them the optimal choice for both campus core and data center networking needs. The proliferation of virtualization, cloud computing, and the increasing volume of data generated by users and IoT devices has necessitated dense high-bandwidth Ethernet networking and aggregation. In these environments, the paramount concerns are data security, performance, and resiliency. These dynamic settings demand efficient network management, monitoring, and optimization efforts while simplifying overall network complexity. The FortiSwitch campus core and data center switching architecture empowers network administrators with the requisite performance, control, and manageability for these demanding scenarios. Its seamless security integration and userfriendly management interface establish a robust foundation for your next-generation campus core or data center.

Specifications


  • Part Number : FS-T1024F-FPOE
  • Condition : New
  • Form Factor: 1U rack-mounted
  • Dimensions: 1.71 inches (H) x 17.26 inches (W) x 18.11 inches (D)
  • Weight: Approximately 14.4 lbs (6.54 kg)
  • Airflow: Front-to-back

  • Ports and Connectivity
  • Fixed Ports:
  • 24 x 10G/5G/2.5G/1G RJ45 ports
  • 2 x 100G QSFP28 ports for high-speed uplink and aggregation
  • Management Ports:
  • 1 x RJ-45 console port
  • 1 x USB Type-A port
  • 1 x USB Type-B port for device connection

  • Power over Ethernet (PoE)
  • PoE Standard: IEEE 802.3bt (PoE++)
  • Total PoE Power Budget: Up to 1440W
  • PoE Power per Port: Up to 60W per port

  • Performance and Capacity
  • Switching Capacity: 880 Gbps
  • Forwarding Rate: Up to 1.309 million packets per second (Mpps)
  • MAC Address Table Size: Up to 64K entries
  • Jumbo Frame Support: Up to 9216 bytes

  • Layer 2/3 Features
  • Layer 2 Features:
  • VLANs (up to 4096)
  • Spanning Tree Protocol (STP, RSTP, MSTP)
  • Link Aggregation Control Protocol (LACP)
  • Access Control Lists (ACLs)
  • Port Security
  • Layer 3 Features:
  • Static Routing
  • Routing Information Protocol (RIP)
  • Open Shortest Path First (OSPF)
  • Virtual Router Redundancy Protocol (VRRP)
  • IPv4 and IPv6 support

  • Redundancy and Reliability
  • Power Supplies:
  • Dual redundant, hot-swappable AC power supplies
  • Cooling:
  • Dual redundant, hot-swappable fan modules
  • Mean Time Between Failures (MTBF): Over 10 years

  • Software and Management
  • Operating System: FortiOS (FortiSwitch OS)
  • Management Options:
  • FortiGate integration via FortiLink
  • FortiSwitchManager
  • FortiLAN Cloud
  • Security Features:
  • 802.1X Authentication
  • DHCP Snooping
  • Dynamic ARP Inspection (DAI)
  • IP Source Guard

  • Environmental Specifications
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Humidity: 5% to 95% non-condensing

  • Certifications and Compliance
  • Safety: UL, CE
  • Electromagnetic Compatibility (EMC): FCC Class A, CE, VCCI, RCM
  • Environmental: RoHS2, WEEE
  • Part Number : FS-T1024F-FPOE
  • Condition : New
