Dell R740xd (24x NVMe), 2x 3.0GHz CPUs, 256GB - 768GB RAM, 3.84TB NVMe SSD
Overview

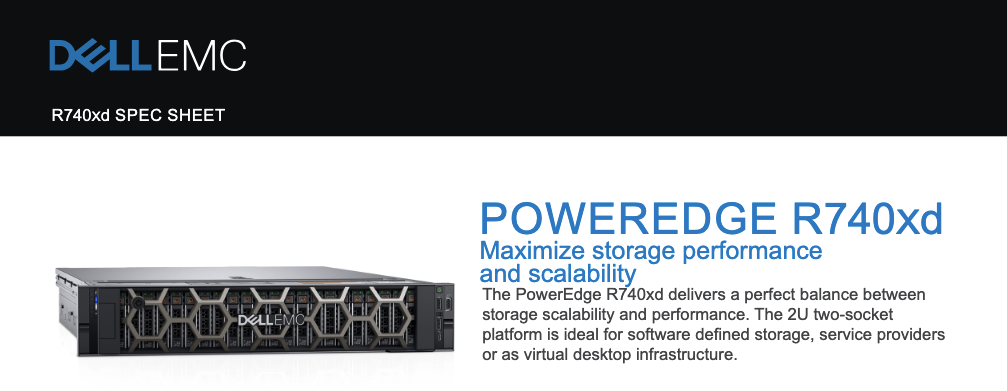

The PowerEdge R740xd provides an ideal mix of scalability in storage and performance. Excellently fitting for software-defined storage, service providers, or virtual desktop infrastructure, this 2U two-socket platform excels in its category. Features 24 DDR4 DIMM slots and up to two 2nd Generation Intel® Xeon® Scalable processors.
Specifications
| Component | Info | Description |
|---|---|---|
| Model | dell | Dell PowerEdge R740XD 24x nVMe (or 8x SAS + 16x nVMe) |
| Processor | 2 | Intel Xeon-Gold 6134 (3.2GHz/8-core/130W) Intel Xeon-Gold 6136 (3.0GHz/12-core/150W) Intel Xeon-Gold 6154 (3.0GHz/18-core/200W) |
| Memory | 256GB 512GB 768GB |
PC4-2666V |
| Network Controller | 2x 10Gb + 2x 1Gb RJ45 | Dell X520 DP 10Gb DA/SFP+ + I350 DP 1Gb Ethernet Network |
| Hard Drives | 0, 2, 4, 8, 12, 16, 24 | Samsung PM983 3.84TB U.2 NVMe PCIe 3.0 x4 SSD |
| Storage Controller (Choose One) | H730P | Dell H730P RAID Controller, 2GB NV Cache PCI-e Adapter |
| Power Supply | 2 | Dell 1100W EPP 80+ Platinum PSU |
| SD Options | yes | Dell internal Dual SD Module and vFlash card |
| Boot Optimized Storage Subsystem (BOSS) | Yes/no | Dell BOSS card Low Profile PCI adapter card includes 2x Dell 240GB M.2 SATA SSD |
| Rails | yes | Dell 2U Rail Kit - R740 Rails |
| Operating System | No | We do not include any COA or install any OS by default |
| Power Cords | 2 | Power Cord, Black, NEMA 5-15P to C13, 18WG, 6 foot |
Brand Dell
Product Line PowerEdge
Form factor: 2U Rack
CPUs: Up to 2x Intel Xeon Scalable processors
CPU Cores: Up to 28 cores per processor
Memory: Up to 3TB DDR4 2666MHz RDIMM /LRDIMM
RAID Controller: PERC H730P, H740P, HBA330 (non-RAID)
IO Slots: Up to 8 x PCIe Gen 3 slots, maximum of 4 x 16 slots Plus Dedicated iDRAC network port
Remote Management: iDRAC9 Lifecycle Controller
Power Supply: Up to 2 PSU Hot Swap
LifeTime Warranty
