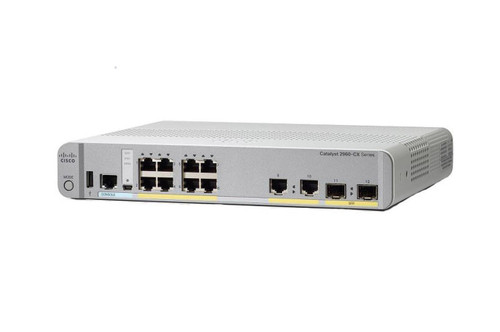

WS-C2960CX-8PC-L-Ref Overview
WS-C2960CX-8PC-L equips 8 Gigabit Ethernet POE+ ports with 2 x 1 Gigabit copper and 2 x 1 Gigabit SFP uplinks. The POE powers up to 30W/port and supplies total 124W POE budget which can power IP phones, IP Cam or other POE devices.Quick spec of WS-C2960CX-8PC-L-Ref
- Product Code : WS-C2960CX-8PC-L
- Feature Set : LAN Base
- Uplink Interfaces : 2 x 1G copper plus 2 x 1G SFP
- Ports : 8 x 10/100/1000 Gigabit Ethernet ports
- Available POE Power : 124W
- Forwarding Bandwidth : 12 Gbps
- Switching Bandwidth (full-duplex capacity) : 24 Gbps
- RAM : 512 MB
- Flash Memory : 128 MB
- Dimensions : 4.44 x 26.9 x 23.8 cm
- Package Weight : 4.65 Kg
WS-C2960CX-8PC-L-Ref Specification
- Ethernet Ports :8 x 10/100/1000 Gigabit Ethernet
- PoE Output Ports :8 PoE+
- Available PoE Power :124W
- Uplinks :2 x 1G copper plus 2 x 1G SFP
- Default Software :LAN Base
- Forwarding Bandwidth :12 Gbps
- Switching Bandwidth (full-duplex capacity) :24 Gbps
- Flash memory :128 MB
- Memory DRAM :512 MB
- Max VLANs :255
- VLAN IDs :4000
- Maximum transmission unit (MTU) :Up to 9000 bytes
- Jumbo frames :9198 bytes
- Forwarding rate 64 Byte Packet :17.9 mpps
- Power connectors :- Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit - The internal power supply supports input voltages between 100 and 240VAC- Use the supplied AC power cord to connect the AC power connector to an AC power outlet
- Indicators :Per-port status: Link integrity, disabled, activity, speed, full-duplex System status: System, link status, link duplex, link speed
- Dimensions (H x W x D) :1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)
- Weight :5.0 lb (2.27 Kg)
- Package Weight :10.25 lb (4.65 Kg)
- Operating* temperature up to 5000 ft (1524 m) :-5°C to +45°C (+23°F to +113°F)
- Operating* temperature up to 10,000 ft (3048 m) :-5°C to +45°C (+23°F to +113°F)
- Storage temperature up to 15,000 ft (4572 m) :-25°C to +70°C (-13°F to +158°F)
- Operating altitude :Up to 3048 m (Up to 10,000 ft)
- Storage altitude :Up to 4000 m (Up to 15,000 ft)
- Operating relative humidity :5% to 95% noncondensing
- Storage relative humidity :5% to 95% noncondensing
- Mean time between failure (MTBF) :569,530
