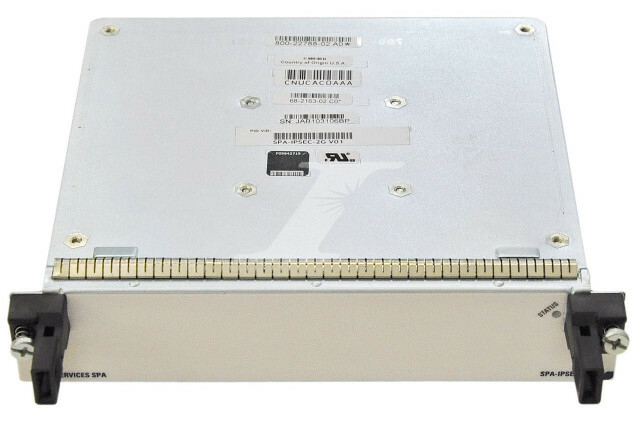

Cisco SPA-IPSEC-2G-2 XR 12000 Series IPsec VPN Shared Port Adapter

Overview

Service providers and enterprises require ubiquitous and secure connectivity to address today’s mission-critical, high-bandwidth applications. Many service providers deploy IPsec VPN technology to geographically extend their existing VPNs, and use IPsec to give remote users access to their corporate VPNs. Enterprises replace their traditional WANs with site-to-site and remote-access VPNs with this technology as well. The Cisco XR 12000 IPsec VPN SPA offers next-generation encryption technology and a form factor designed to
enable a more flexible and scalable network infrastructure

Specifications

The Cisco SPA-IPSEC-2G-2 XR 12000 Series IPsec VPN Shared Port Adapter is a network interface module designed for Cisco XR 12000 Series Routers.

• • The Cisco XR 12000 IPsec VPN SPA offers next-generation encryption technology and a form factor designed to enable a more flexible and scalable network infrastructure.
  • It delivers scalable and cost-effective VPN performance for Cisco XR 12000 Series Routers.

Key Features and Benefits:

• • Next-Generation Encryption Technology:
    • In addition to supporting Data Encryption Standard (DES) and Triple Data Encryption Standard (3DES), the Cisco IPsec VPN SPA supports Advanced Encryption Standard (AES), including all key sizes (128-, 192-, and 256-bit keys).
    • AES offers the ultimate in IPsec VPN security and interoperability.
  • High-Speed VPN Performance:
    • Provides up to 2.5 Gbps of AES and 3DES IPsec throughput with large packets and 1.6 Gbps with Internet mix (IMIX) traffic.
  • Scalability:
    • Up to 20 Cisco IPsec VPN SPAs can be installed in a Cisco 12416 Router (10 slots with 2 SPAs per slot), providing up to 50 Gbps of total throughput.

Datasheet
