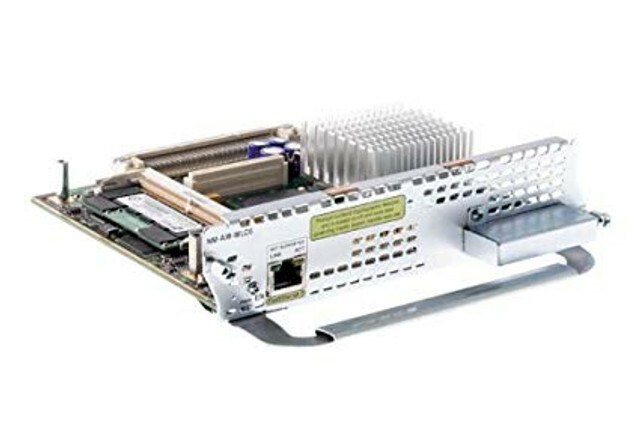

The Cisco NM-AIR-WLC6-K9 is a wireless LAN controller module designed to enhance wireless networking solutions for small- and medium-sized businesses (SMBs) and enterprise branch offices.

Specifications:

• • The NM-AIR-WLC6-K9 provides wireless LAN controller capabilities.
  • It is available in two models:
    • NME-AIR-WLC8-K9:
    • NME-AIR-WLC12-K9:
  • Both models come with the following preinstalled hardware:
    • Memory: 256 MB
    • Hard Disk: Not applicable (N/A)
  • The faceplate of the Cisco WLAN Controller Network Module includes status indicators:
    • LINK: Indicates Gigabit Ethernet link status (enabled or disabled).
    • ACT: Reflects Gigabit Ethernet activity (active or inactive).
    • PWR/SYS: Indicates system shutdown readiness (stable, shut down, or in progress).
    • EN: Shows network module detection and enablement status.
    • CF: Indicates CompactFlash usage (not used or detected at bootup).

Shutting Down the WLAN Controller:

• • To gracefully shut down the hard disk before removing power from the router or starting an online insertion and removal (OIR) sequence, follow these steps:
    • Insert a narrow pin into the shutdown opening on the faceplate.
    • Press the button for less than 2 seconds.

Online Insertion and Removal (OIR):

• • When performing online removal or insertion of the Cisco WLAN Controller Network Module, use the following command:

    Router# service-module service-engine slot/port session
