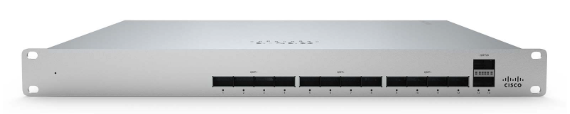

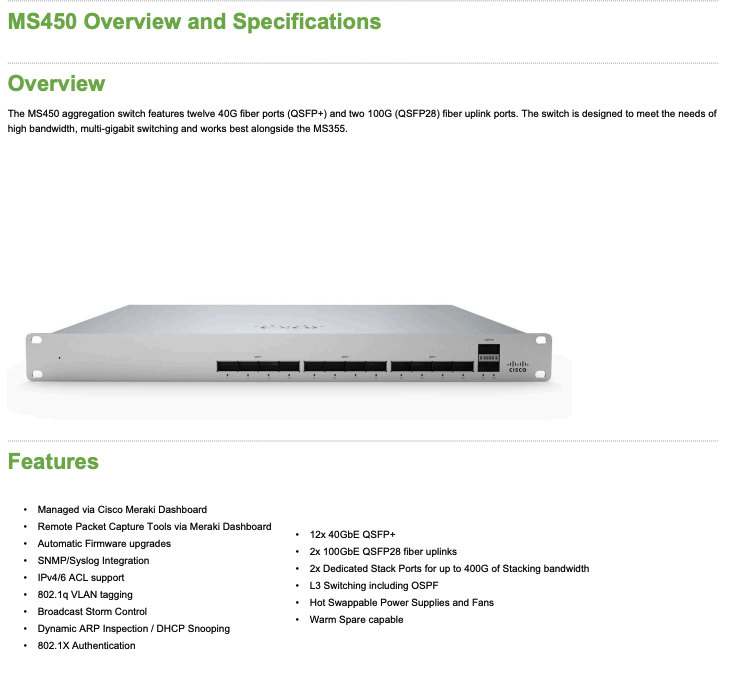

Cisco MS450-12-HW Meraki Cloud Managed MS450-12 Switch
Specification
- Form Factor: 1RU rack-mountable
- Dimensions: 1.7 inches (H) x 19.1 inches (W) x 18.9 inches (D)
- Weight: Approximately 13.8 lbs (6.25 kg)
- Airflow: Front-to-back
- Mounting: Rack mount kit included
Ports and Connectivity
- Network Ports:
- 12 x 100GbE QSFP28 Ports for high-speed uplinks and interconnects
- 4 x 40GbE QSFP+ Ports for additional high-performance connectivity
- Stacking Ports:
- 2 x 100G QSFP28 Ports
- Supports stacking of up to 8 switches with 400 Gbps stack bandwidth
- Supported Transceivers:
- Compatible with a variety of 100G and 40G QSFP+ and QSFP28 transceivers
⚙️ Performance and Capacity
- Switching Capacity: 1.36 Tbps
- Forwarding Rate: 654.76 million packets per second (mpps)
- MAC Address Table Size: 64,000 entries
- VLAN Support: Up to 4,094 VLANs
Security and Management Features
- Authentication: 802.1X
- Access Control Lists (ACLs): IPv4/IPv6 support
- Network Protocols:
- 802.1Q VLAN tagging
- Dynamic ARP Inspection
- DHCP Snooping
- Broadcast Storm Control
- Management:
- Cloud-managed via Meraki Dashboard
- SNMP and Syslog integration
- Remote packet capture tools
- Automatic firmware upgrades
Power and Environmental
- Power Input: 100–240 VAC, 47–63 Hz
- Power Consumption: 47–138W
- Redundant Power Supplies: Supports hot-swappable power supplies (1 included; second optional)
- Fan Modules: 3 x MA-FAN-18K hot-swappable fans
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Storage Temperature: -4°F to 158°F (-20°C to 70°C)
- Humidity: 5% to 95% (non-condensing)
Features
- Layer 3 Switching: Supports OSPF routing
- Warm Spare Redundancy: Utilizes VRRP for high availability
- Quality of Service (QoS): Optimized for voice and video traffic
- Zero-Touch Provisioning: Simplifies deployment and configuration
- Remote Troubleshooting: Includes packet capture and diagnostic tools
- Firmware Management: Secure, user-scheduled firmware updates
1-Year Warranty
