ASR1004-Ref Overview

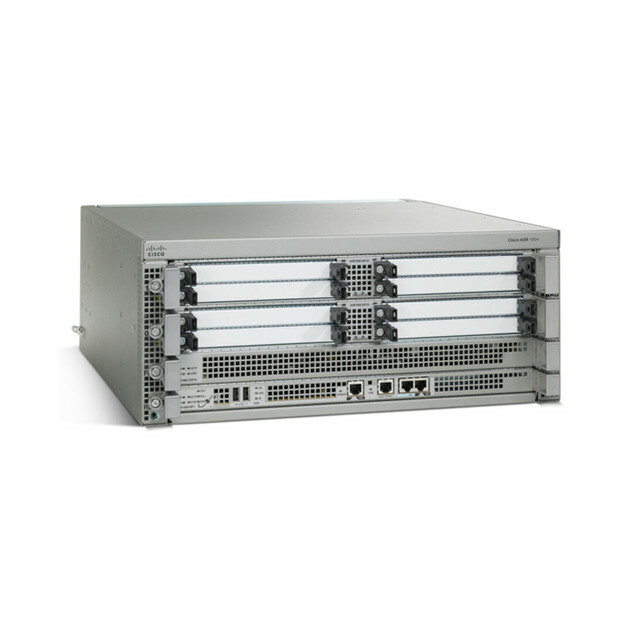

The Cisco ASR 1004 Router is a versatile networking device designed for enterprises and service providers.
- Form Factor: The ASR 1004 comes in a 4-rack unit (RU) form factor.
- Port Adapters: It supports up to 8 shared port adapters (SPAs).
- Processor Slots: The router includes one route processor and one embedded services processor slot.
- Throughput: It provides up to 40 Gbps throughput support, making it a cost-effective edge solution.
- Software Redundancy: Running on Cisco IOS XE Software, the ASR 1004 supports software redundancy without redundant hardware.
- Use Cases:
- Enterprise: Used as a high-performing edge solution for the private WAN, WAN aggregation, or Internet gateway device.
- Service Providers: Functions as a broadband Layer 2 Tunneling Protocol (L2TP) access concentrator (LAC), L2TP Network Server (LNS), or at the Layer 3 VPN (L3VPN) provider edge.
- Featured Content:
- IDC White Paper: Addresses the growing demands on the enterprise WAN and key challenges to management.
- Test Report: Isocore confirms that the Cisco ASR 1000 Series delivers high-performance, scalable edge services.
Quick spec of ASR1004-Ref
- Models : ASR1004
- Scalability : 10 to 40 Gbps
- Targeted for : Enterprise WAN or Internet edge, service provider
- Rack Height : 4U
- Shared port adapters : 8
- Embedded services processor slots : 1
- Route processor slots : 1
- Number of SPA interface processors (SIPs) supported : 2
- Redundancy : Yes: Software
- Dimension (H x W x D) : 177.8 x 437.4 x 461.0 mm
ASR1004-Ref Specification
- Product Model:Cisco ASR1004
- Form Factor:Rack mountable
- Product Type:Router
- Product Family:1000
- Compatible Rack Unit:2U
- Dimensions(H X W X D):7'' x 17.2'' x 22''
- Input Voltage:110 V AC-220 V AC
- Power Source:Power Supply
- Operating Temperature:0 to 40 degrees Celsius
- Humidity Range:5% to 85%
Datasheet
Warranty: 365 days
