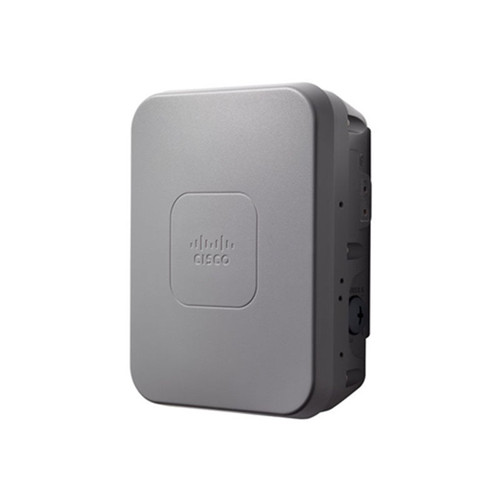

AIR-AP1562I-B-K9-Ref Overview
Part NumberAIR-AP1562I-B-K9Description802.11ac Wave 2 Low-Profile Outdoor AP, Internal Antenna, B Regulatory DomainFeatures 3 x 3 MIMO with three spatial streams Multi- and single-user MIMO Maximal ratio combining (MRC) 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic-shift-diversity (CSD) support Interfaces WAN port 10/100/1000BASE-TEthernet,autosensing (RJ-45), PoE in SFP port (fiber or electrical) Management console port (RJ-45) Multicolor LED DC power input Reset button Dimensions (L x W x H)9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)Weight5.6 lb (2.5 kg)Quick spec of AIR-AP1562I-B-K9-Ref
- Part Number: AIR-AP1562I-B-K9
- Description: 802.11ac Wave 2 Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain
- Features: 3 x 3 MIMO with three spatial streams Multi- and single-user MIMO Maximal ratio combining (MRC) 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic-shift-diversity (CSD) support
- Interfaces: WAN port 10/100/1000BASE-TEthernet,autosensing (RJ-45), PoE in SFP port (fiber or electrical) Management console port (RJ-45) Multicolor LED DC power input Reset button
- Dimensions (L x W x H): 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
- Weight: 5.6 lb (2.5 kg)
AIR-AP1562I-B-K9-Ref Specification
- Type:Wireless access point
- Form Factor:External
- Connectivity Technology:Wireless
- Data Transfer Rate:1.3 Gbps
- Data Link Protocol:IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Compliant Standards:IEEE 802.11, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
- Features:3T3R MIMO technology, Auto-sensing per device, Cisco Flexible Antenna Port technology, CleanAir technology, ClientLink technology, Cyclic shift diversity (CSD), DFS support, MAC address filtering, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, VPN passthrough
- Network Transport Protocol:IPSec, L2TP
- Wireless Protocol:802.11a/b/g/n/ac Wave 2
- Wi-Fi Bands:2.4 GHz, 5 GHz
- Qty:1
- WAN DMZ:WAN
- Type:Console
- Connector Type:SFP (mini-GBIC)
- Compliant Standards:ANSI / IEEE 587 C62.41, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268.2003, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 328, EN 301 489-1, EN 301.893, EN 301489-17, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, FCC OET Bulletin 65c, FCC Part 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-2, RSS-102, RSS-210, UL 60950-2
- Authentication Method:Extensible Authentication Protocol (EAP), X.509 certificates
- Encryption Algorithm:AES, LEAP, PEAP, TLS, TTLS, WPA, WPA2
- Directivity:Omni-directional
- Antenna Form Factor:Internal
- Support Details Type:Limited warranty
- Support Details Full Contract Period:1 year
- Min Operating Temperature:-40 °F
- Max Operating Temperature:149 °F
- Compatibility:PC
- Manufacturer:Cisco Systems
- Packaged Quantity:1
- Product Line:Cisco Aironet
- Model:1562I
- Brand:Cisco
- Width:6.7 in
- Depth:3.9 in
- Height:9 in
- Weight:5.51 lbs
- Type:1 year warranty
- Ruggedized Design:Outdoor
