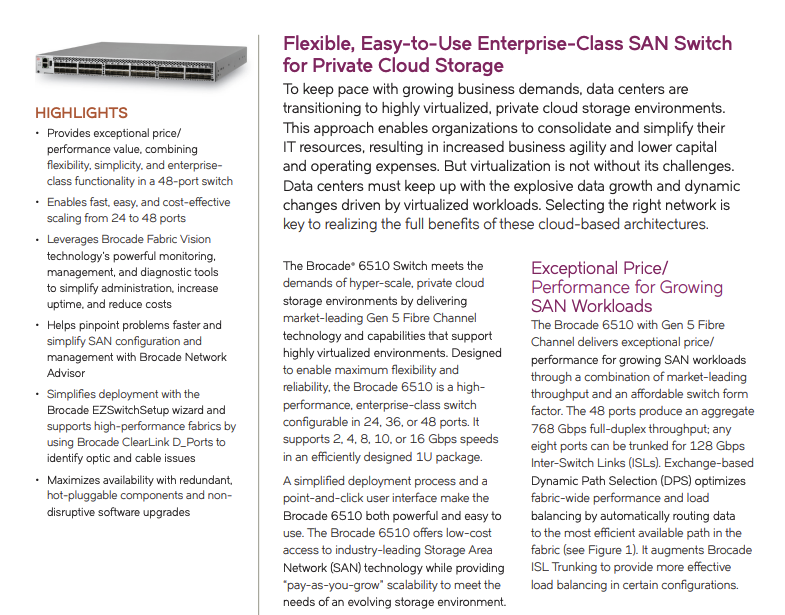

Brocade BR-6510-48-16G-R Fibre Channel SAN switchThis switch is ideal for high-performance computing (HPC), artificial intelligence (AI), and enterprise data center environments requiring high-speed, low-latency connectivity.To keep pace with growing business demands, data centers are transitioning to highly virtualized, private cloud storage environments. This approach enables organizations to consolidate and simplify their IT resources, resulting in increased business agility and lower capital and operating expenses. But virtualization is not without its challenges. Data centers must keep up with the explosive data growth and dynamic changes driven by virtualized workloads. Selecting the right network is key to realizing the full benefits of these cloud-based architectures.
- Part Number : BR-6510-48-16G-R
- Condition : Seller refurbished
Ports and Connectivity
- Network Ports: 48 x 16 Gbps Fibre Channel SFP+ ports (all active)
- Management Ports:
- 1 x Fast Ethernet RJ45 (Management)
- 1 x Console RJ45
- 1 x USB Type A
⚙️ Performance and Capacity
- Switching Capacity: 768 Gbps
- Port-to-Port Latency: 700 ns
- ISL Trunking: Supports up to 128 Gbps with eight ports
- Dynamic Path Selection (DPS): Optimizes fabric-wide performance and load balancing
Security and Management Features
- Brocade Fabric Vision Technology: Provides advanced diagnostics, monitoring, and management capabilities
- Virtual Fabrics: Enables multiple logical fabrics within a single physical switch
- Quality of Service (QoS): Prioritizes traffic to ensure performance for critical applications
- Role-Based Access Control (RBAC): Enhances security by defining user roles and permissions
- In-Flight Encryption and Data Compression: Supports secure metro extension over ISLs
Power and Environmental
- Power Supplies: 2 x Hot-swappable, redundant integrated power supply/fan FRUs
- Power Consumption: Approximately 2.3 watts per port
- Operating Temperature: 0°C to 40°C
- Non-Operating Temperature: -40°C to 70°C
- Humidity:
- Operating: 10% to 85% non-condensing
- Non-Operating: 10% to 90% non-condensing
Form Factor and Compliance
- Form Factor: 1U rack-mountable
- Dimensions: 1.7" (H) x 17" (W) x 23.2" (D)
- Weight:
- With 1 PSU: 11.4 kg
- With 2 PSUs: 12.488 kg
- Compliance:
- Safety: CB, cTUVus, CE, CU
- EMC (Emissions): CE, FCC, VCCI, ICES, RCM
- RoHS: Compliant
