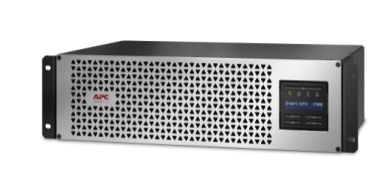

APC SMTL1500RM3UC Smart-UPS Lithium-Ion 1500VA 120V Short Rack

Overview:

The APC Smart-UPS SMTL1500RM3UC is a line-interactive uninterruptible power supply (UPS) designed to provide reliable power protection for servers, routers, switches, and other network devices.

APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD

Specifications:

• Capacity: 1500VA / 1350W
• Nominal Output Voltage: 120V
• Output Frequency: 50/60 Hz ± 3 Hz (auto-sensing)
• Topology: Line-interactive
• Waveform Type: Sine wave
• Transfer Time: 6 ms typical
• Battery:
• Type: Lithium-ion
• Typical Recharge Time: 3 hours
• Expected Battery Life: Up to 10 years
• Backup Time at Full Load (1350W): Approximately 2.1 minutes
• Backup Time at Half Load (675W): Approximately 12.8 minutes
• Physical Specifications:
• Form Factor: Rackmount 3U
• Dimensions (H x W x D): 5.2 x 17.2 x 11.9 inches (13.2 x 43.7 x 30.2 cm)
• Weight: Approximately 31.5 lbs (14.3 kg)
• Interfaces:
• Outlets: 6 x NEMA 5-15R
• Communication Ports:
• SmartConnect Ethernet Port
• SmartSlot for optional Network Management Card
• USB Port
• Management and Monitoring:
• LCD Display: Provides real-time status updates and configuration options
• Remote Management:
• Cloud-based remote power monitoring and management via SmartConnect
• Compatible with EcoStruxure IT and third-party centralized management platforms
• Environmental Specifications:
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 0% to 95% non-condensing
• Additional Features:
• Automatic Voltage Regulation (AVR): Adjusts voltage fluctuations without using the battery
• Surge Protection: Provides protection against power surges and spikes
• Warranty: 5-year repair or replace warranty
• Equipment Protection Policy: $150,000 lifetime guarantee
